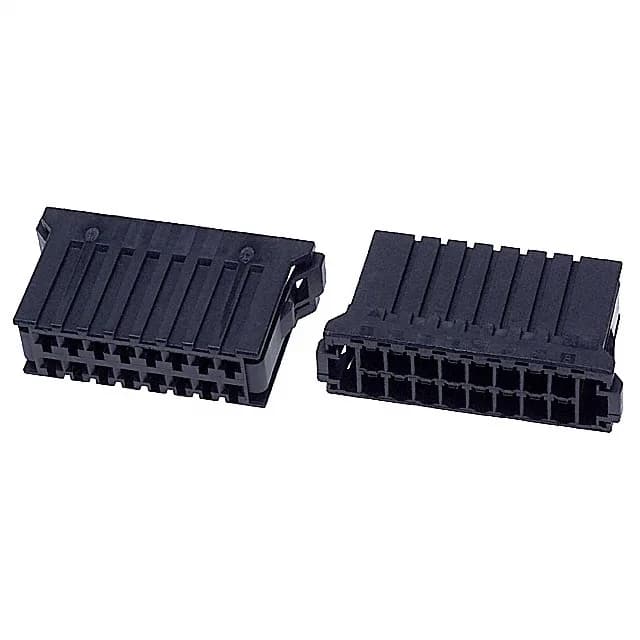

TE Connectivity Dynamic D-3100 receptacle housing, 16 circuits, 2 rows, 3.81mm pitch, 5.08mm row spacing, crimp termination, free-hanging, black thermoplastic, -55°C to 105°C, RoHS.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Note | Contacts Not Included |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Row spacing | 0.200\" (5.08mm) |
| Rows | 2 |
| Contact termination | Crimp |
| Positions | 16 |
The 3.81 mm pitch and 5.08 mm row spacing give it a wider footprint than the 3.00 mm Micro-Fit or 2.54 mm headers — it's sized for moderate current per circuit where you need more creepage and easier terminal insertion.
The housing accepts the terminal, then you insert the wire assembly into the cavity until the lance locks. The black color is standard for the D-3100 receptacle; no keying or color-coding variant is listed for this position count.
No. The 178289-7 receptacle housing ships without contacts. You must order the Dynamic D-3100 female crimp socket terminals separately.
Yes, the 178289-7 is RoHS compliant per TE's current compliance declaration.
