TE Connectivity AMP Connectors 178303-3 — Pin Headers

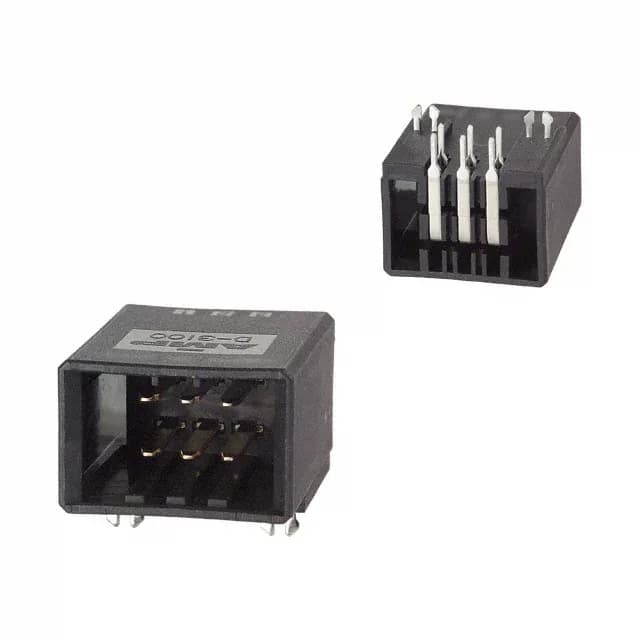

178303-3 TE Connectivity AMP Connectors Pin Header 6 Pos

MPN178303-3
Active

TE Connectivity AMP Connectors Dynamic D-3100 series header, 178303-3, 6-position, 3.81mm pitch, right-angle through-hole, shrouded 4-wall, gold mating contacts, board lock, UL94 V-0, -55°C to 105°C.

$4.8900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 178303-3 datasheet (PDF)
RoHSNot applicable
SeriesDynamic D-3100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

178303-3 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.568\" (14.43mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

178303-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.150\" (3.81mm)
Positions6
Row spacing - mating0.200\" (5.08mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle 6-position header for board-edge wiring

The 178303-3 is a 6-position, 3.81mm pitch header from TE's Dynamic D-3100 series, designed for board-to-board or cable connections.

Gold contacts rated for industrial duty

The post tails are tin-plated for reliable solder wetting. Compared to the sibling 1-1871673-2 (2.50mm pitch, tin mating finish, 4 positions), the 178303-3 offers wider pitch and gold contacts — a better choice if your board has the space and you need higher mating-cycle reliability.

Frequently asked questions

What is the pitch of the TE 178303-3 header?

The mating pitch is 0.150" (3.81mm), with a row spacing of 0.200" (5.08mm).

What is the mating connector for the 178303-3?

This is a header with tab contacts. It mates with a Dynamic D-3100 series receptacle housing that accepts the matching crimp terminals. The specific receptacle order code depends on your wire gauge and circuit count — consult the series product drawing for the correct mating half.
