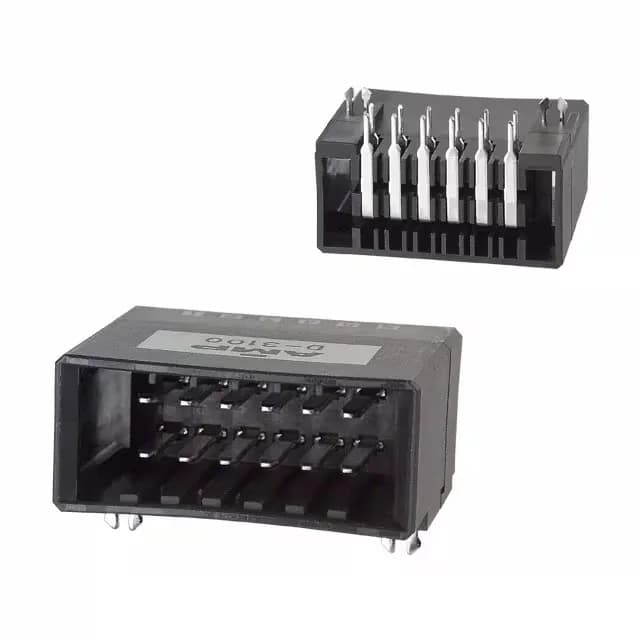

178306-5 TE Connectivity Dynamic D-3100 Header, 12 Pos

MPN178306-5
Active

TE Connectivity AMP Connectors Dynamic D-3100 series, 178306-5, header, 12 positions, 3.81mm pitch, right-angle through-hole, shrouded 4-wall, board lock, tin-plated contacts, UL94 V-0, -55°C to 105°C, 250V.

$4.9600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 178306-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesDynamic D-3100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

178306-5 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.568\" (14.43mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

178306-5 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.150\" (3.81mm)
Positions12
Row spacing - mating0.200\" (5.08mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingTin
Contact finish thickness - mating78.7µin (2.00µm)

Product details

3.81mm Pitch, 12-Position Right-Angle Header

The 178306-5 is a 12-position, dual-row header from TE's Dynamic D-3100 series, on a 3.81mm mating pitch with a 5.08mm row spacing. The detent lock provides audible feedback when the mating receptacle is fully seated.

This header mates with Dynamic D-3100 series receptacles that accept crimp terminals. The tab-type contacts are designed for wire-to-board or board-to-board connections (the style is listed as Board to Board or Cable). Termination is solder — the through-hole posts measure 0.150" (3.81mm) long, suitable for standard PCB thicknesses around 1.6mm. The insulation height of 0.568" (14.43mm) provides clearance for wire routing under the mated connector.

RoHS compliant.
