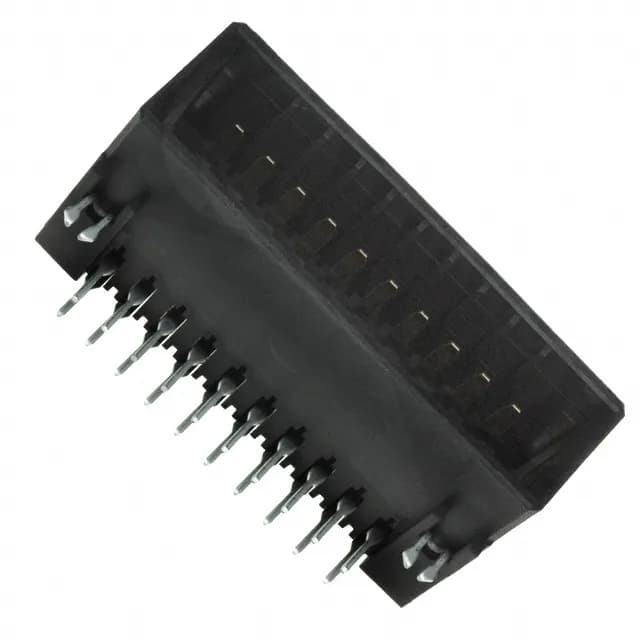

178308-3 TE Dynamic D-3100 Header 20 Pos 3.81mm R/A

MPN178308-3
Active

TE Connectivity AMP Connectors Dynamic D-3100 series, 178308-3, board-to-board or cable header, 20 positions, 0.150" (3.81mm) pitch, dual-row, right-angle through-hole, shrouded, gold-plated mating contacts, detent lock, board lock, UL94 V-0, -55°C to 105°C, 250V rating.

$9.5400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 178308-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesDynamic D-3100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

178308-3 key specifications
ParameterValue
SeriesDynamic D-3100
TypeTab
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Voltage rating250V
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.568\" (14.43mm)
Insulation materialThermoplastic, Polyester, Glass Filled
Material flammability ratingUL94 V-0

All specifications

178308-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageBulk
FeaturesBoard Lock
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial
Contact shapeRectangular
Rows2
Pitch0.150\" (3.81mm)
Positions20
Row spacing - mating0.200\" (5.08mm)
Contact finish - postTin
Contact length - post0.150\" (3.81mm)
Contact finish - matingGold
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-Position Right-Angle Header for Board-to-Board or Cable

The 178308-3 is a 20-position, dual-row header from TE's Dynamic D-3100 series, designed for board-to-board or cable connections. Its 0.150" (3.81mm) mating pitch and 0.200" (5.08mm) row spacing define the PCB footprint, while the right-angle orientation keeps the mated connector parallel to the board, saving vertical clearance in tight enclosures.

Gold Mating Contacts and Industrial Temperature Range

Mating contacts are gold-plated to 30.0µin (0.76µm) over a copper alloy base, supporting repeated mating cycles in corrosive or field-service environments. The post tails are tin-plated for solderability. Rated for 250V and an operating temperature range of -55°C to 105°C, the header suits general-purpose industrial applications.
