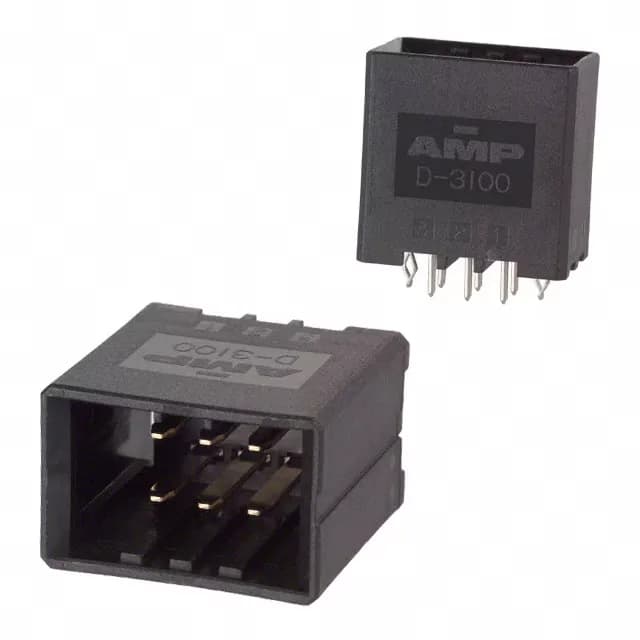

TE Connectivity AMP Connectors Dynamic D-3100 series, 6-position, 2-row, shrouded header, 0.150" (3.81mm) pitch, through-hole solder termination, gold-plated mating contacts, board lock feature, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
With a 250V voltage rating and the housing's UL94 V-0 thermoplastic polyester, this header suits power distribution and signal interconnect in control cabinets and industrial equipment.
This sets the PCB layout and the mating receptacle pitch.
