TE Connectivity AMP Connectors Dynamic D-3100 series header, 6 circuits, 2-row, 3.81 mm pitch, shrouded 4-wall, through-hole solder, gold-plated mating contacts, board lock, UL94 V-0, -55°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

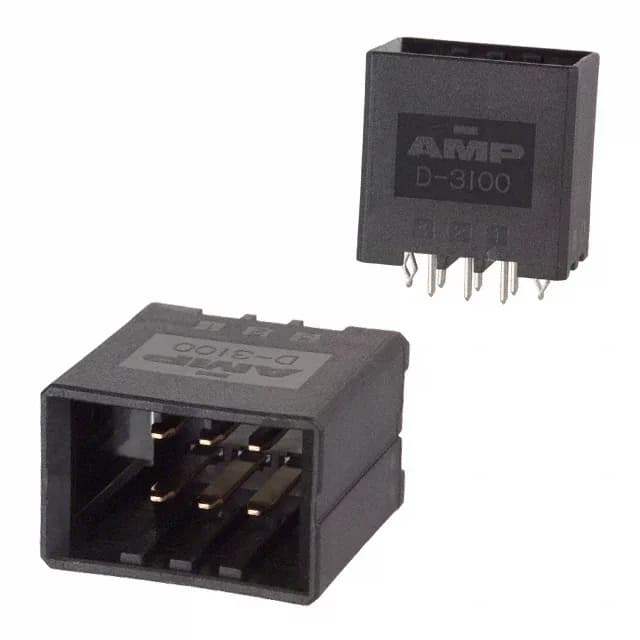

The 178323-3 is a vertical through-hole header from TE's Dynamic D-3100 series, carrying 6 circuits in two rows at a 3.81 mm pitch. It mates with a corresponding Dynamic D-3100 receptacle for board-to-board or cable-to-board connections in industrial and general-purpose equipment.
ROHS3 compliant, UL94 V-0 rated housing.
178323-3 is sourced per RFQ through independent distribution. Submit a quote request with your target quantity; pricing and lead time are confirmed at that point.
Confirm the receptacle part number against your harness design.
