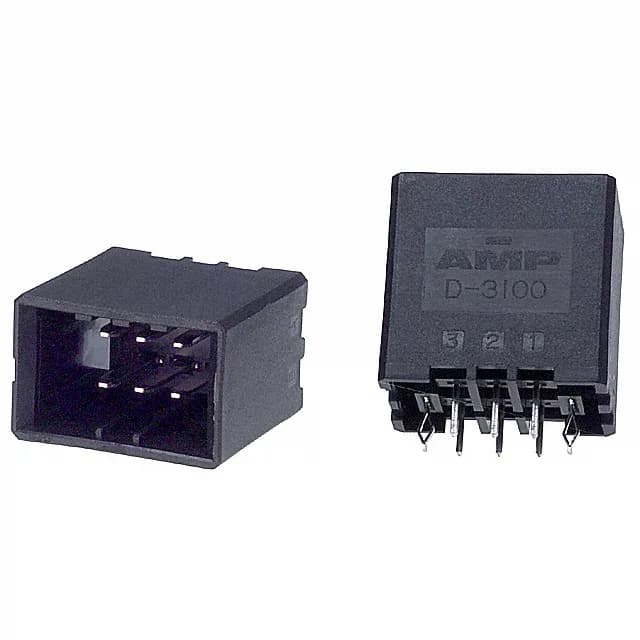

TE Connectivity AMP Connectors Dynamic D-3100 series, 178323-5, a 6-position, 2-row, vertical through-hole header, 3.81 mm pitch, shrouded 4-wall, tin-plated contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 6 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 178323-5 is a 6-position, 2-row vertical header from TE's Dynamic D-3100 series. The 3.81 mm pitch and 5.08 mm row spacing set the board footprint — this is wider than the 2.50 mm pitch on the sibling 1-1871673-2, so the mating receptacle and PCB layout must match this dimension.
Active lifecycle status — TE still lists this as a current product. ROHS3 Compliant.
The header has 6 positions, all loaded, in a 2-row configuration with a 3.81 mm pitch and 5.08 mm row spacing. The contact type is a rectangular tab. For the exact pin numbering, refer to the TE Dynamic D-3100 series drawing.
Yes, it is ROHS3 Compliant.
The mating half is a Dynamic D-3100 series receptacle (socket housing) that accepts the 3.81 mm pitch, 6-position, 2-row tab header.
