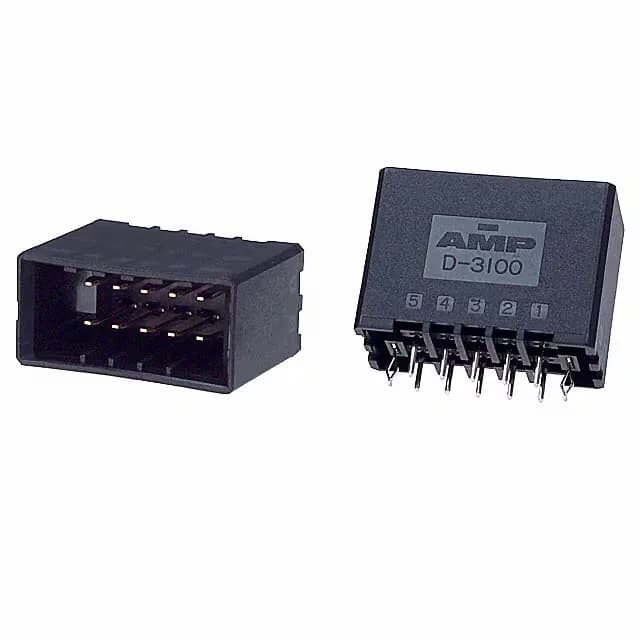

TE Connectivity AMP Connectors Dynamic D-3100 header, order code 178325-2, 10 positions, dual row, 0.150" (3.81mm) pitch, 250 V, gold-plated mating contacts, through-hole, solder termination.
TE Dynamic D-3100 178325-2 Header, 10-Pos 3.81mm
MPN178325-2
Active
TE Connectivity AMP Connectors Dynamic D-3100 header, order code 178325-2, 10 positions, dual row, 0.150" (3.81mm) pitch, 250 V, gold-plated mating contacts, through-hole, solder termination.
$5.4900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 10 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity AMP Connectors provide for 178325-2?
The 178325-2 is rated UL94 V-0 for flammability. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors per standard industry practice.
What is 178325-2's listed style?
The 178325-2 is listed as a Board to Board or Cable style header.
