TE Connectivity AMP Connectors, Dynamic D-3100 series, header, 16 circuits, 0.150" (3.81 mm) pitch, through-hole, shrouded-4-wall, gold mating finish 15.0 µin, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dynamic D-3100 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 250V |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.850\" (21.59mm) |
| Insulation material | Thermoplastic, Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Rectangular |
| Rows | 2 |
| Pitch | 0.150\" (3.81mm) |
| Positions | 16 |
| Row spacing - mating | 0.200\" (5.08mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

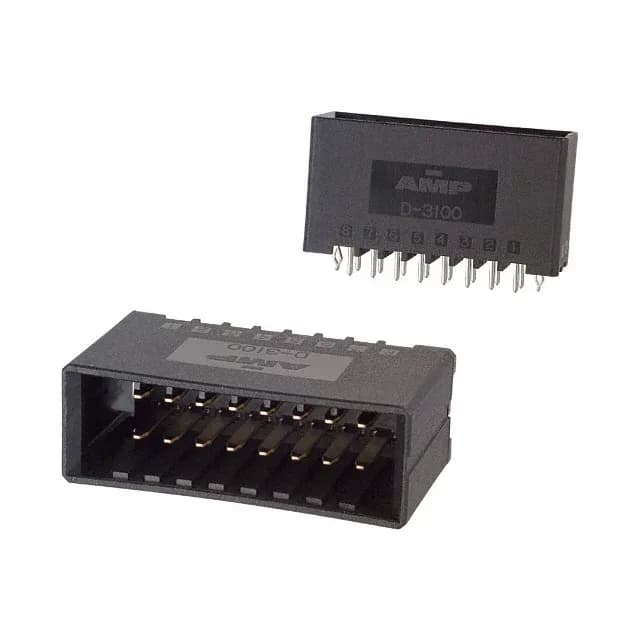

The 178327-2 is a 16-position, dual-row header from TE's Dynamic D-3100 series, pitched at 0.150" (3.81 mm) between contacts and 0.200" (5.08 mm) between rows. It is a through-hole, shrouded-4-wall design with a detent lock for positive retention in vibration or cable-drag applications.
This shrouded header mates with a Dynamic D-3100 series receptacle housing that accepts the matching crimp tab terminals. Confirm the receptacle part number against your wire gauge and circuit count.
RoHS compliance is standard for TE's Dynamic D-3100 series. Verify the specific compliance certificate against your regional requirements at order time.
