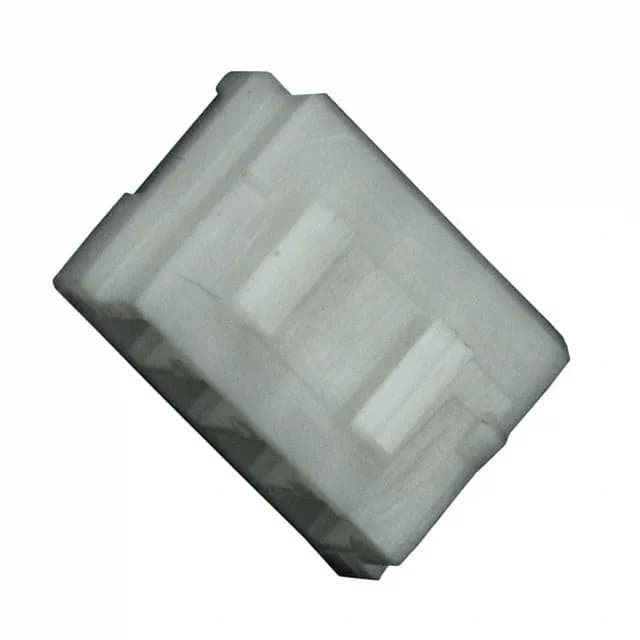

TE Connectivity CT series, 179228-4, receptacle housing, 4 positions, 1 row, 0.079" (2.00mm) pitch, free hanging (in-line), crimp termination, natural PA66, contacts not included, bulk.
| Parameter | Value |
|---|---|
| Series | CT |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Operating temperature | -55°C ~ 85°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.079\" (2.00mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
Contacts are not included in this housing — you order them separately by the TE CT series crimp terminal part number. The free-hanging (in-line) mounting style lets you route the harness directly to a mating header on the PCB or to another receptacle with a pin header interface.
No obsolescence notice or end-of-life timeline is on record.
No — the 179228-4 is a housing only. Contacts are not included and must be ordered separately as TE CT series female socket crimp terminals.
The pitch is 0.079" (2.00 mm), which is the standard CT series spacing for this compact wire-to-board interconnect family.
It mates with the matching TE CT series 2.00 mm pitch pin header. The header side is a separate order code — confirm the position count and header orientation against your board layout.
