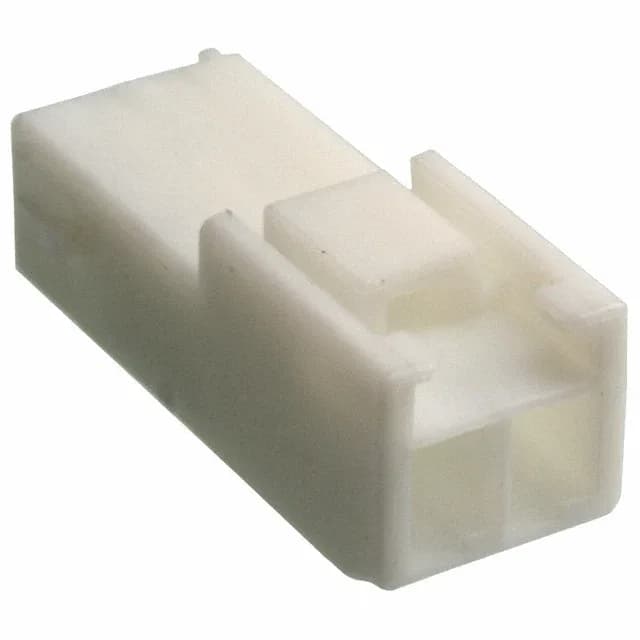

2-Position Power Double Lock Receptacle Housing for In-Line Harnesses
The 0.156" (3.96mm) pitch matches the standard Power Double Lock header footprint, giving enough clearance between adjacent circuits for the 20–16 AWG power wires this series typically handles.
You need the matching Power Double Lock crimp tab terminals (sold per-reel or in strip form) and a hand or automatic crimp tool to terminate the wire ends. The housing accepts the tab-style contacts that are inserted from the rear and retained by a lance — no secondary lock is required for the 2-position version. For the mating half, this receptacle mates with the Power Double Lock header (male pin) housing that carries the corresponding circuit count and 3.96mm pitch. The header side uses the same tab terminal family, so a full harness uses two housings and two sets of crimp terminals per circuit pair.
