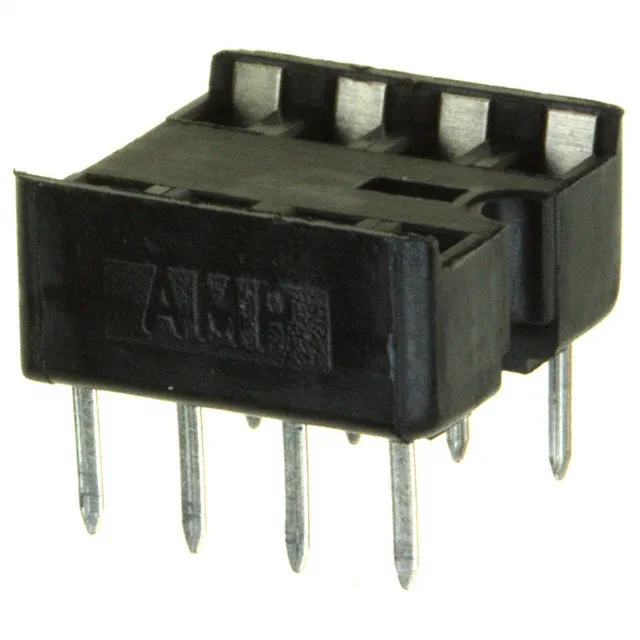

TE Connectivity Diplomate DL DIP socket, order code 1825373-2, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, through-hole, solder termination, gold-plated mating contacts, closed frame.
TE 1825373-2 Diplomate DL DIP Socket, 8 Pos, Obsolete
MPN1825373-2
Obsolete
TE Connectivity Diplomate DL DIP socket, order code 1825373-2, 8 positions (2 x 4), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, through-hole, solder termination, gold-plated mating contacts, closed frame.
$3.6900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C~125°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.128\" (3.24mm) |
| Contact finish thickness - post | 15.0µin (0.38µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
| Number of positions or pins | 8 (2 x 4) |
