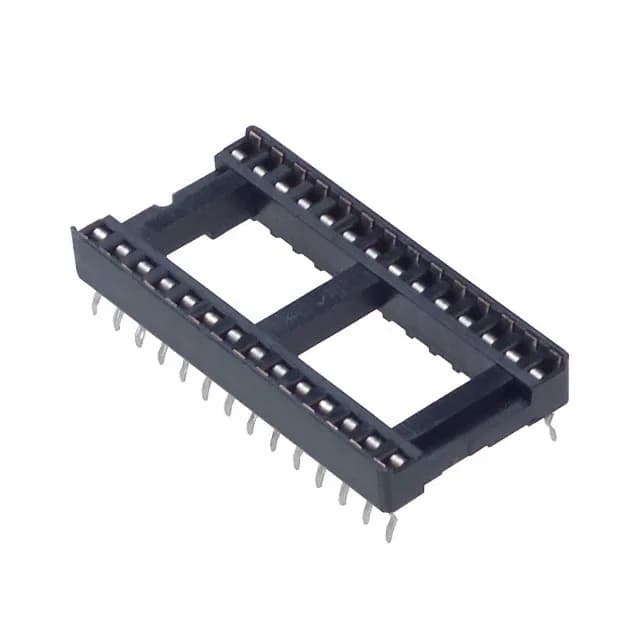

TE Connectivity AMP Connectors Diplomate DL DIP header, order code 1825376-2, 28 positions, 2.54 mm pitch, gold-plated mating contacts, through-hole, solder termination, UL94 V-0.
TE 1825376-2 Diplomate DL DIP Header, 28 Pos, 2.54mm
MPN1825376-2
Obsolete
TE Connectivity AMP Connectors Diplomate DL DIP header, order code 1825376-2, 28 positions, 2.54 mm pitch, gold-plated mating contacts, through-hole, solder termination, UL94 V-0.
$1.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | Diplomate DL |
| Mounting | Through Hole |
| Operating temperature | -55°C~125°C |
| Housing material | Thermoplastic, Glass Filled |
| Contact material - post | Phosphor Bronze |
| Contact material - mating | Phosphor Bronze |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 30mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.120\" (3.05mm) |
| Contact finish thickness - post | 15.0µin (0.38µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
| Number of positions or pins | 28 (2 x 14) |
