TE Connectivity AMP Connectors 1827059-3 — USB, Type-C & HDMI Connectors

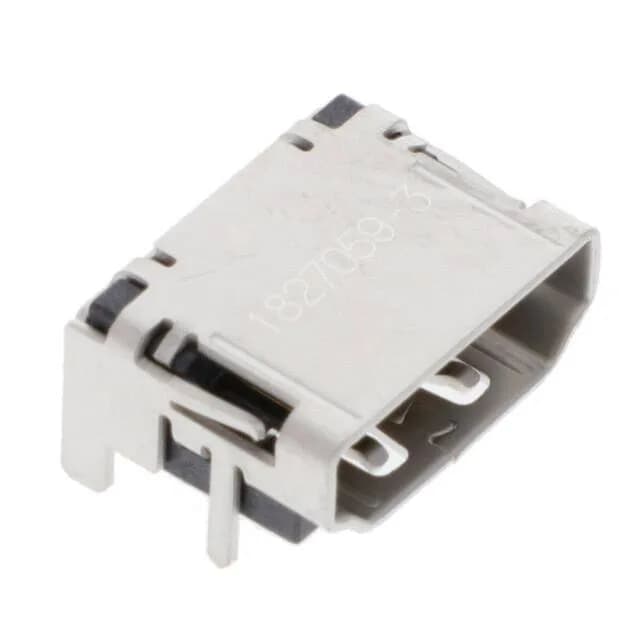

TE Connectivity 1827059-3 HDMI Receptacle, 19 Contacts, 0.5A

MPN1827059-3
Obsolete

TE Connectivity HDMI receptacle, 19 contacts, 0.5A, 40VAC, gold-plated contacts, panel mount / surface mount right-angle / through-hole, UL94 V-0, 10,000 mating cycles, Tape & Reel.

$3.1600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1827059-3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1827059-3 specifications
ParameterValue
MountingPanel Mount; Surface Mount, Right Angle; Through Hole
Connector typeHDMI
Voltage - rated40VAC
Current rating0.5A
Positions19
Mounting featureHorizontal
Operating temperature-25°C~70°C
Insulation colorBlack
Shell (Shielding material)Phosphor Bronze
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide
ShieldingUnshielded
TerminationSolder
Mating cycles10000
Contact finishGold
Number of ports1

Product details

HDMI Receptacle for Panel or Board Mount

The TE Connectivity 1827059-3 is a 19-contact HDMI receptacle, the standard full-size connector for digital audio/video interfaces.

Mating Cycles and Duty

The 1827059-3 supports three mounting styles: panel mount, surface mount right-angle, and through-hole. The specific variant you hold is a single fixed configuration — verify which mounting style this order code represents before committing to the board layout. Solder termination is used across all options.

Frequently asked questions

What is the replacement for 1827059-3?

Since 1827059-3 is obsolete, finding a replacement is critical for continued production or repair.

Where can I buy 1827059-3?

Buyers need to locate distributors that still have stock of this obsolete part.

What is the price of 1827059-3?

Sourcing buyers must compare prices among remaining stock to stay within budget.

Is 1827059-3 obsolete?

Confirmation of obsolescence affects design decisions and sourcing strategy.

What is the datasheet for 1827059-3?

Design engineers need the full datasheet for pinout and electrical specifications.

What is the pinout of 1827059-3?

Critical for design validation and ensuring compatibility with existing circuits.
