TE Connectivity AMP Connectors 1827654-1 — Wire-to-Board Connectors

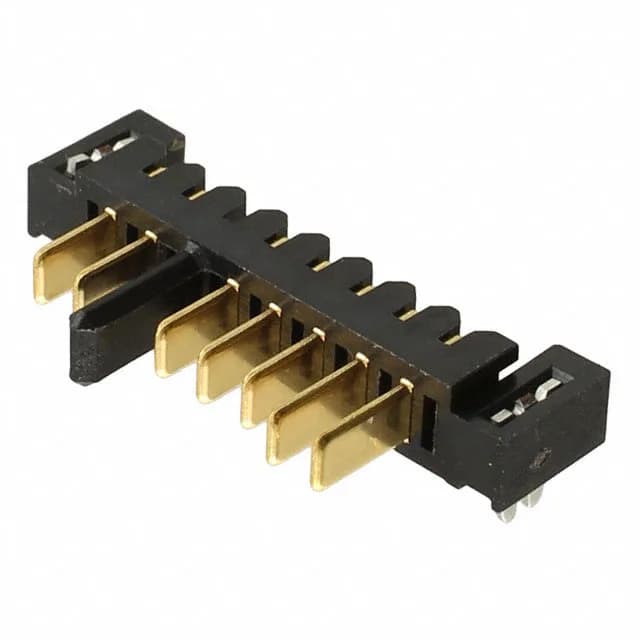

TE 1827654-1 Battery Header, 7 Pos 2.00mm R/A, 7A

MPN1827654-1
Active

TE Connectivity Battery Connector Header, Male Blades, 7 Positions, 2.00mm Pitch, Through Hole Right Angle, Solder Termination, Gold Contact Finish, 7A, 30V, Black, Tray.

$4.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1827654-1 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeHeader, Male Blades
Fastening typePush-Pull
Voltage rating30 V
Current rating7 A
Operating temperature-30°C ~ 70°C
ColorBlack
Contact materialCopper Alloy
Material - insulationThermoplastic
Pitch0.079\" (2.00mm)
PackageTray
FeaturesKeyless
TerminationSolder
Contact finishGold
Rows1
Positions7

Product details

The push-pull fastening type and keyless design mean the connector relies on friction retention rather than a locking latch — acceptable for low-vibration applications where the mated pair is not subject to mechanical shock or constant movement.

That part is a through-hole (non-right-angle) component, so the mated assembly will have the header standing off the board at a right angle while the receptacle sits flat — plan the cable exit direction accordingly. The 2.00 mm pitch is tighter than the common 2.54 mm (0.100") header pitch, so verify the PCB footprint matches before layout. The right-angle solder tails require a keep-out zone on the board for the body overhang.

Frequently asked questions

What is the mating connector for 1827654-1?

The mating receptacle is TE Connectivity 1827684-1, a 7-position female blade socket with the same 2.00 mm pitch and gold-plated contacts.
