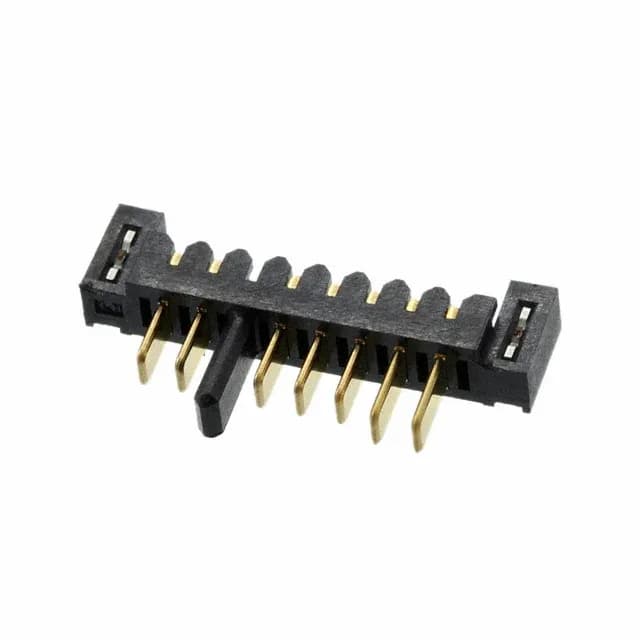

Battery Plug Header for 7-Circuit Power Interconnects
The gold-plated contacts and push-pull fastening are designed for repeated mate/unmate cycles in battery-pack and portable-power applications. The thermoplastic housing is rated for -30°C to 70°C operation.
Board Layout Fit: Pitch, Position Count, and Mounting
The 2.00 mm pitch keeps the board footprint compact for a 7 A power circuit — tighter than the more common 2.54 mm pitch, so check your pad layout against the product drawing. Solder termination means it's a wave-solder or hand-solder fit, not a press-fit backplane part.
Current and Voltage: What the 7 A / 30 V Rating Means
7 A per circuit is genuine power-level current for a 2.00 mm pitch — each blade is sized to carry the DC rail in a battery-powered device, not just a signal line. The 30 V rating matches the typical single-cell to 4-cell Li-ion stack voltage.
