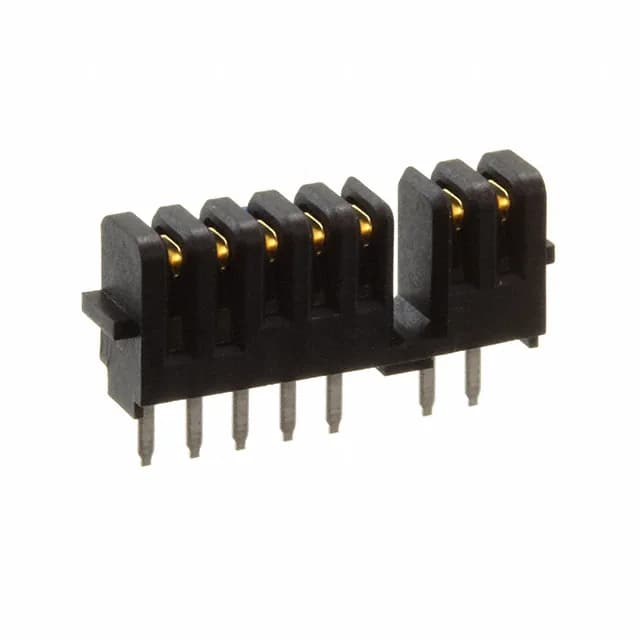

TE Connectivity, Battery Receptacle, 1827684-1, 7 positions, 2.00mm pitch, 1 row, 7 A, through-hole solder, gold contact finish.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Receptacle, Female Blade Sockets |
| Fastening type | Push-Pull |
| Current rating | 7 A |
| Operating temperature | -30°C ~ 70°C |
| Color | Black |
| Contact material | Copper Alloy |
| Material - insulation | Thermoplastic |
| Pitch | 0.079\" (2.00mm) |
| Package | Tray |
| Features | Keyless |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 7 |
Gold-plated copper alloy contacts resist corrosion in the battery compartment environment, and the push-pull fastening gives a positive engagement without a secondary latch.
Through-hole solder termination gives a mechanical anchor that handles the insertion force of a battery pack connector. The keyless design means no polarisation key to align during assembly; the push-pull retention relies on the housing geometry, not a locking ramp.
Yes, 1827684-1 is ROHS3 Compliant per the manufacturer's listing.
The pitch is 0.079" (2.00 mm), which drives the board footprint spacing for the 7-position single-row layout.
