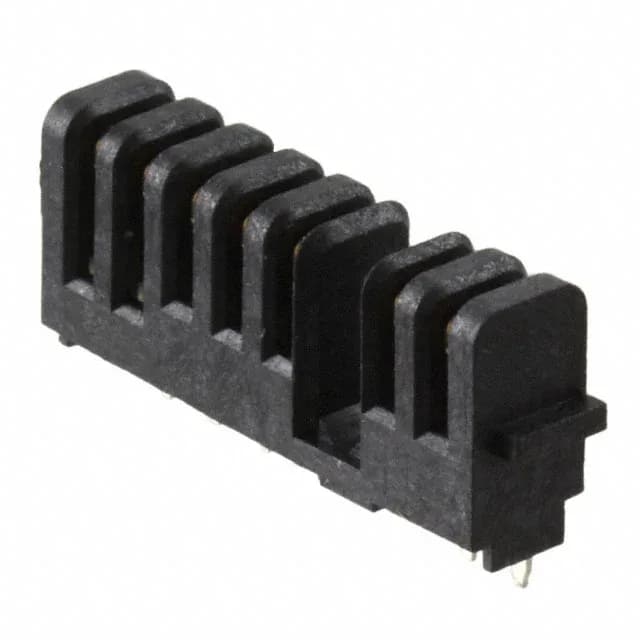

Battery Pack Interconnect — 7-Circuit, 2.00 mm Pitch, Right-Angle SMT
The right-angle, surface-mount orientation places the battery parallel to the main PCB, suiting portable devices, handheld instruments, and small-format battery-powered equipment where the pack mounts flush to the board edge. Rated 6 A per circuit at 30 V, this connector handles moderate charging and discharge currents for a single-cell or small multi-cell lithium-ion pack — think power tools, medical monitors, or IoT gateways. Keyed housing prevents reverse mating, a common failure in battery harness assembly.
The 2.00 mm pitch drives the SMT pad layout on the PCB. Each of the 7 positions needs a solder pad matching the blade socket footprint, with the right-angle orientation placing the connector body at the board edge. The panel stops act as mechanical locating features — they register the connector against the board edge so the battery tab aligns consistently during assembly. The thermoplastic, halogen-free insulation meets the flame and material restrictions common in consumer electronics enclosures. Operating temperature range of -20°C to 80°C covers indoor consumer and light industrial use, but not automotive underhood or outdoor telecom cabinet environments where the ambient exceeds 80°C. The 30 V rating is a DC limit — confirm the battery chemistry's maximum voltage stays below this ceiling.
