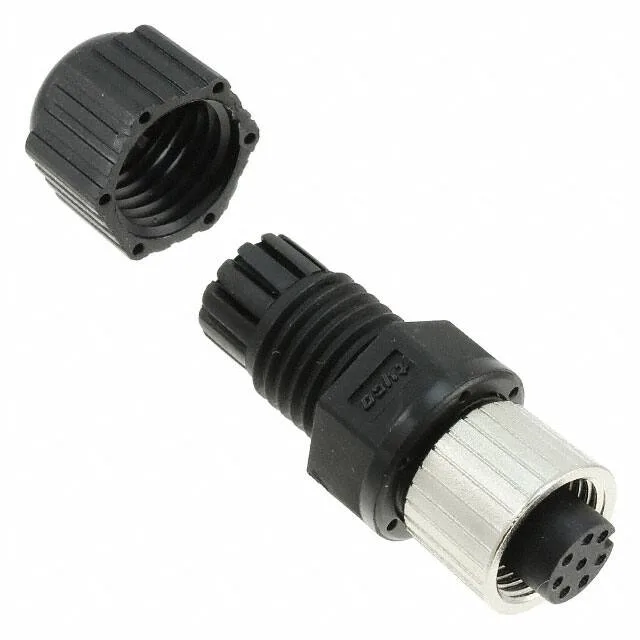

TE Connectivity AMP Connectors 1838274-4
MPN1838274-4
Active
CONN RCPT FMALE 8POS SOLDER CUP
$26.7Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 30VAC/DC |
| Current rating | 2A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Operating temperature | -25°C ~ 90°C |
| Shell material | Polyamide (PA), Nylon, Glass Filled |
| Primary material | Plastic |
| Package | Bulk |
| Orientation | Keyed |
| Termination | Solder Cup |
| Applications | Automotive, Industrial |
| Positions | 8 |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 5.90µin (0.150µm) |
