TE Connectivity AMP Connectors 184164-1 — Connector Housings

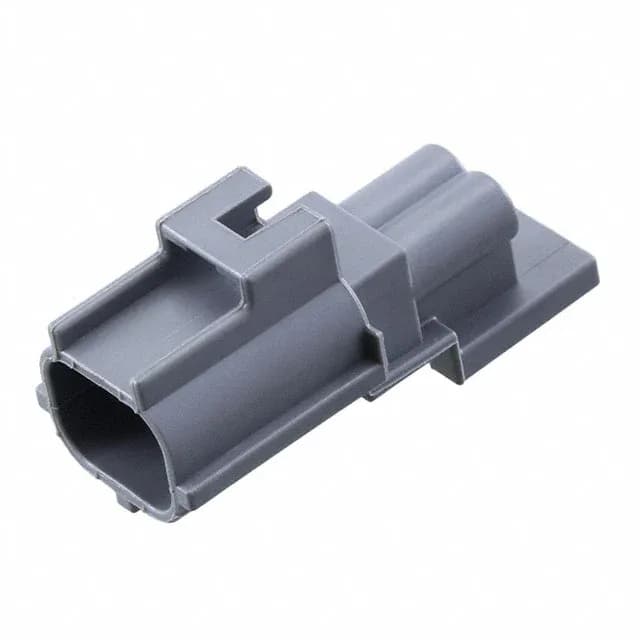

184164-1 TE Connectivity 2-Position Plug Housing 5mm Sealed

MPN184164-1
Active

TE Connectivity AMP Connectors 184164-1, 2-position single-row plug housing, 5.00mm pitch, sealed, latch holder, gray PBT glass-filled, -40°C to 125°C, contacts not included.

$2.0600Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

184164-1 specifications
ParameterValue
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Holder
Operating temperature-40°C ~ 125°C
ColorGray
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled
NoteContacts Not Included
Pitch0.197\" (5.00mm)
PackageBulk
FeaturesSealed
Rows1
Contact terminationCrimp
Positions2

Product details

Sealed 2-position plug housing for harsh environments

The 5.00mm pitch gives good spacing for routing 14-18 AWG wire without crowding.

The mating connector is a sealed receptacle housing with the same 5.00mm pitch and latch holder interface — typically the TE 184165 series or equivalent. The exact mating part number depends on the circuit count and mounting style (panel or free-hanging). For a 2-position sealed mate, look at the 184165-1 receptacle housing. For crimp contacts, use TE's male pin terminals designed for 5.00mm pitch housings, such as the 1-928918-1 or similar. These are crimp-on, sold separately, and must be seated fully until the latch clicks. The housing material is glass-filled PBT, which holds the terminal retention tines securely over temperature.

The closest functional second-source is the 1-1703884-1, which shares the same series and bulk packaging, but verify the latch and seal geometry against your mating half before substituting.

Frequently asked questions

What contacts fit the 184164-1 housing?

Contacts are not included — order TE male pin terminals for 5.00mm pitch housings, such as the 1-928918-1 series. Confirm the wire gauge range and current rating of the terminal against your application.
