26-circuit Micro Quadlok header
The 185226-1 is the 26-circuit member of TE Connectivity's Micro Quadlok board-to-cable/wire header line, shrouded on all four walls with a friction lock for positive retention.

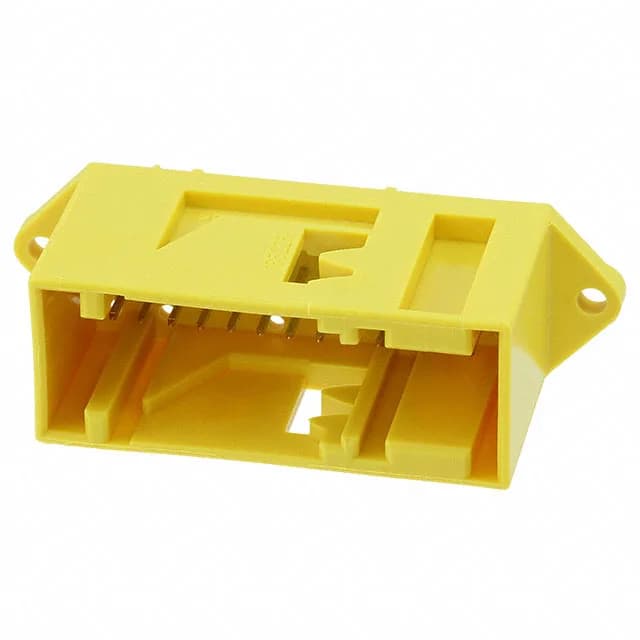

TE 185226-1 Header, 26 Pos, 2.54mm, Micro Quadlok
MPN185226-1
Active
TE Connectivity AMP Connectors Micro Quadlok header, order code 185226-1, 26 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall, friction lock.
$3.8600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C~85°C |
| Insulation color | Yellow |
| Insulation height | 0.823\" (20.90mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Mounting Flange |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.128\" (3.25mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
Product details
Frequently asked questions
What is the connector style and series for 185226-1?
The 185226-1 is a Board to Cable/Wire header from the Micro Quadlok series, with a shrouded 4-wall housing and friction lock.
