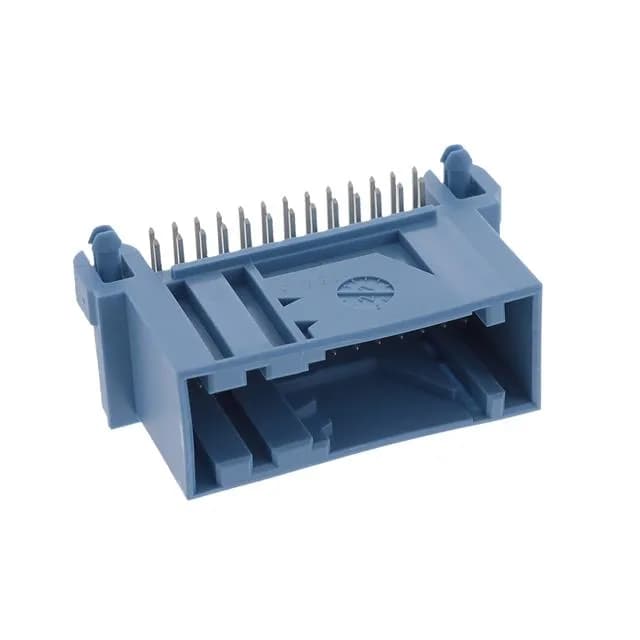

26-position right-angle header for board-to-cable/wire
Board guide and mounting details
The insulation height is 0.669" (17.00mm) — account for this clearance above the board when routing wires or placing nearby components. The post length for soldering is 0.102" (2.60mm), suitable for standard through-hole PCB thicknesses.
Voltage rating is 12 VDC, typical for automotive signal circuits.
The 953440-3 is a 6-position variant with a mounting flange and friction lock, also brown. Neither is a drop-in replacement for the 26-position 185534-2 — the pin count and board footprint differ. Outside the Micro Quadlok series, the 1-1871673-2 is a 4-position header with 0.098" (2.50mm) pitch and a detent lock, rated 250 VAC/DC. It serves a different application space (general purpose/industrial) and is not pin-compatible.
