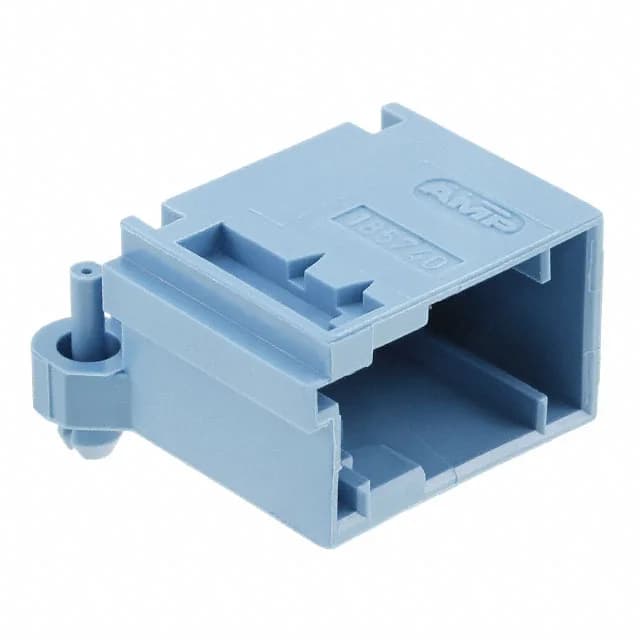

TE Connectivity AMP Connectors Micro Quadlok header, order code 185740-2, 12 positions, dual row, 0.100" (2.54 mm) pitch, shrouded 4-wall, friction lock, through-hole right-angle, solder termination, tin-plated mating contacts.
185740-2 TE Connectivity Micro Quadlok Header, 12 Pos
MPN185740-2
Active
TE Connectivity AMP Connectors Micro Quadlok header, order code 185740-2, 12 positions, dual row, 0.100" (2.54 mm) pitch, shrouded 4-wall, friction lock, through-hole right-angle, solder termination, tin-plated mating contacts.
$1.3433Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro Quadlok |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Insulation color | Blue |
| Insulation height | 0.630\" (16.00mm) |
| Insulation material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Lock, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
Product details
Frequently asked questions
Where can I buy the 185740-2 and request a price?
The 185740-2 is available for order. Submit a request for quote (RFQ) with the desired quantity to confirm pricing and availability.
