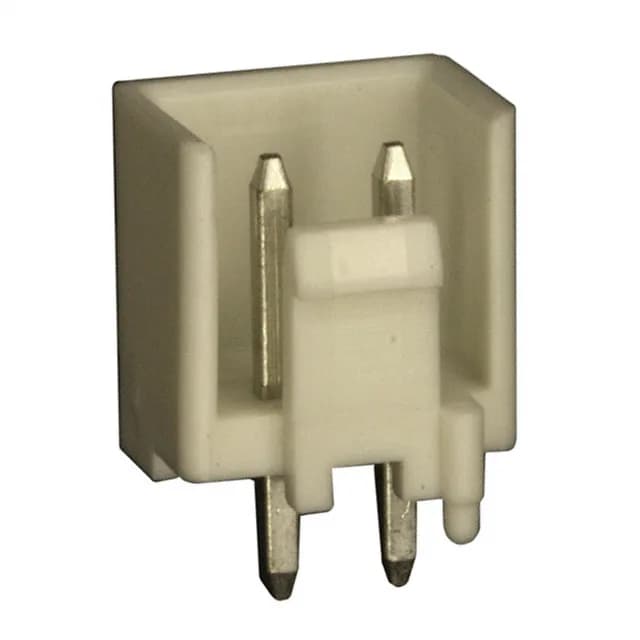

2-position, 3.96 mm pitch — Economy Power header for wire-to-board duty
Pitch is 0.156" (3.96 mm), rated 7.5 A at 250 VAC.
Shrouded 4-wall with friction lock — vibration-resistant mate
Through-hole termination — board guide aids alignment
Overall contact length is 0.567" (14.40 mm), with 0.306" (7.77 mm) of mating length to engage the receptacle terminal fully.
Active production — sourcing via RFQ
RoHS3 compliant (ROHS3). Housing is UL94 V-0 rated PBT, glass filled, white. Operating temperature range -25°C to 105°C.
Mating half and second-source note
Mates with TE Economy Power receptacle housings and crimp terminals (e.g., 1-1871673-2 or similar 2-position receptacle). For a functional alternative, the 1394090-1 is a 2-position header from the same series with identical pitch and current rating — verify the shroud and lock style before substituting.
