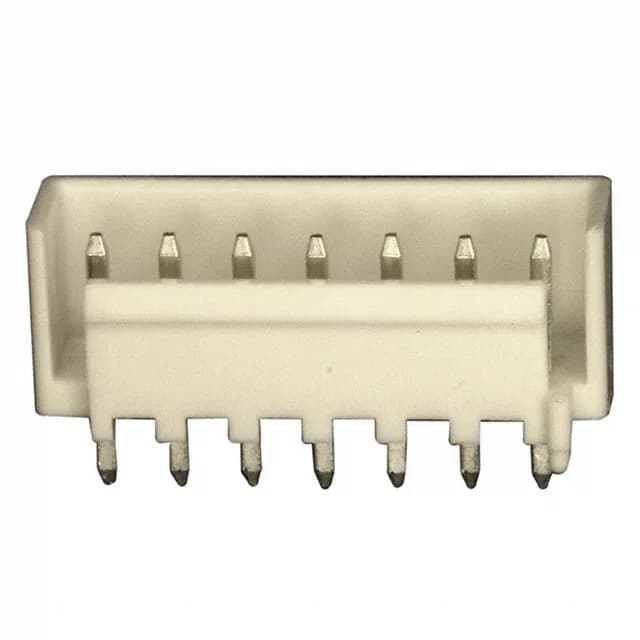

TE Connectivity AMP Connectors Economy Power series header, 1877285-7, 7 positions, 3.96mm pitch, shrouded 4-wall, friction lock, through-hole, tin contacts, 7.5A, 250VAC, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.472\" (12.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.306\" (7.77mm) |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
Mounts through-hole with a 0.142" (3.60mm) post length and 0.567" (14.40mm) overall contact length. The square male pins accept standard 3.96mm pitch crimp receptacles from the Economy Power family.
