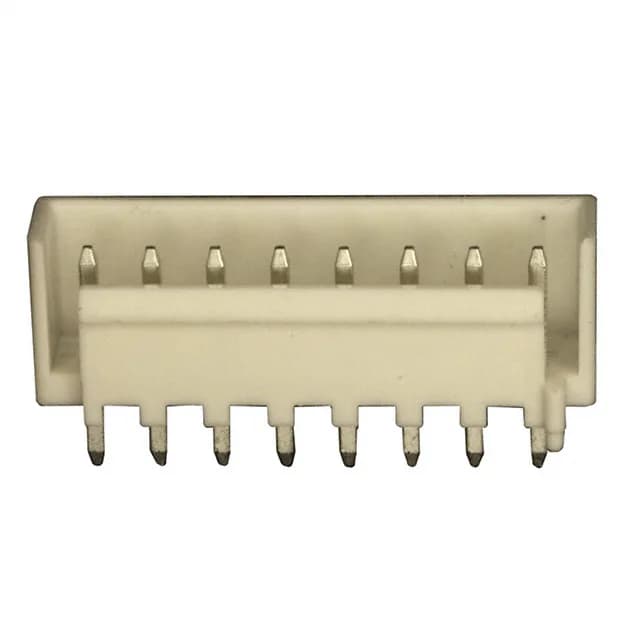

TE Connectivity AMP Connectors, Economy Power series, single-row vertical header, 8 positions, 0.156" (3.96mm) pitch, tin-plated brass contacts rated 7.5 A per circuit at 250 VAC, 4-wall shrouded with friction lock and board guide, through-hole solder termination, UL94 V-0 PBT housing, -25°C to 105°C operating range.
| Parameter | Value |
|---|---|
| Series | Economy Power |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | 7.5A |
| Operating temperature | -25°C ~ 105°C |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.472\" (12.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT), Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial, Lighting |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Overall contact length | 0.567\" (14.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.306\" (7.77mm) |
| Contact finish thickness - post | 39.4µin (1.00µm) |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
It mates with the corresponding Economy Power crimp receptacle to make a board-to-wire connection for general-purpose, industrial, and lighting applications.
Each tin-plated brass contact is rated 7.5 A at 250 VAC.
This header mates with the Economy Power crimp receptacle housing (e.g., 1-1871673-2 or similar 8-position, 3.96mm pitch receptacle) and the corresponding tin-plated crimp terminals. The friction lock engages with the receptacle's locking ramp.
