TE Connectivity AMP Connectors 1877285-9 — Pin Headers

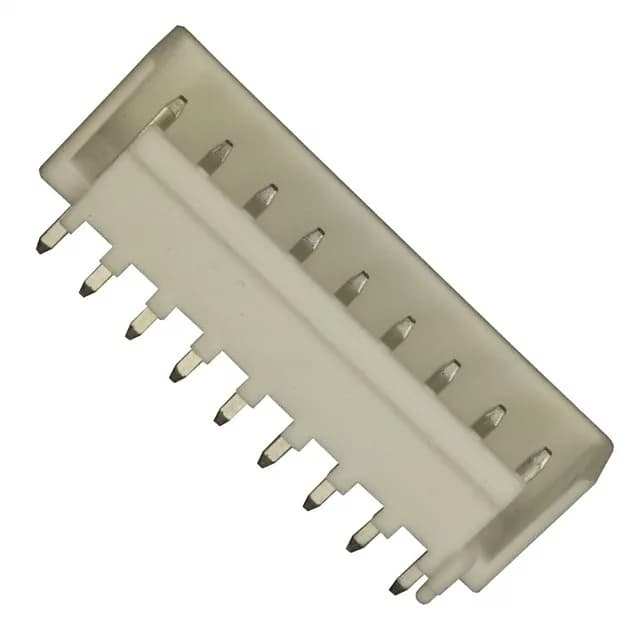

1877285-9 TE Connectivity Economy Power 9-Pin Header 3.96mm

MPN1877285-9
Active

TE Connectivity AMP Connectors 1877285-9, Economy Power series, single-row 9-position through-hole header, 0.156" (3.96mm) pitch, 7.5 A per circuit at 250VAC, tin-tin brass contacts, 4-wall shroud, friction lock, -25 to 105°C.

$0.8900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1877285-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEconomy Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1877285-9 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C ~ 105°C
Contact materialBrass
Insulation colorWhite
Insulation height0.472\" (12.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

1877285-9 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
FeaturesBoard Guide
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions9
Contact finish - postTin
Contact length - post0.142\" (3.60mm)
Overall contact length0.567\" (14.40mm)
Contact finish - matingTin
Contact length - mating0.306\" (7.77mm)
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating39.4µin (1.00µm)

Product details

Wire-to-board header with 4-wall shroud and friction lock

The 1877285-9 is a 9-position single-row through-hole header from TE's Economy Power series, pitched at 3.96 mm (0.156") — the standard spacing for mating with the matching Economy Power receptacle. Rated 7.5 A per circuit at 250 VAC, with tin-on-tin contacts (39.4 µin plating on both mating and post sides) and a UL94 V-0 glass-filled PBT housing.

Mates with the Economy Power series receptacle (crimp or IDC type) using the same 3.96 mm pitch and friction lock interface. The board guide feature aids alignment during assembly.

Frequently asked questions

What is the recommended mating connector for 1877285-9?

The 1877285-9 mates with the Economy Power series receptacle (crimp or IDC type) using the same 3.96 mm pitch and friction lock. Confirm the receptacle's position count matches your circuit requirement.
