TE Connectivity AMP Connectors Micro-MaTch receptacle, 8 positions, 2 rows, 0.100-inch (2.54 mm) pitch, tin-plated forked contacts, surface-mount solder termination, -40°C to 105°C operating range, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Micro-MaTch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 100VDC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Red |
| Insulation height | 0.209\" (5.30mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |

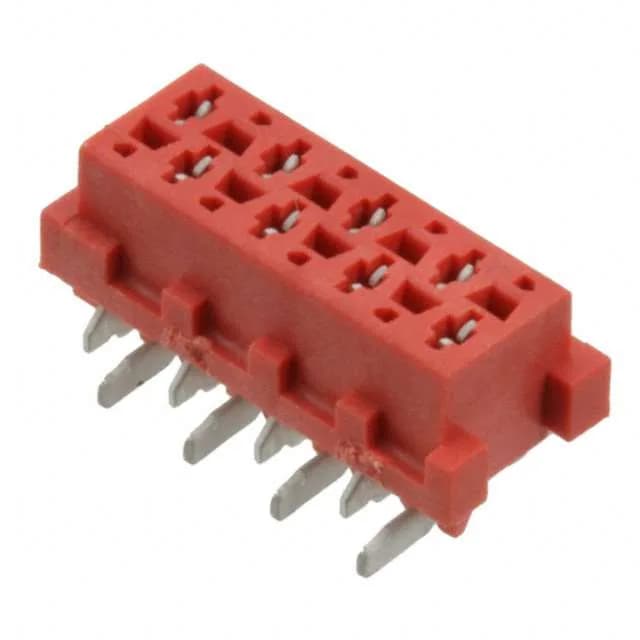

The 188275-8 is an 8-position, 2-row receptacle from TE's Micro-MaTch series, rated for board-to-board or cable applications.
The SMD termination with board-to-board or cable style means the receptacle sits flat on the PCB, accepting a vertical or right-angle header from the same Micro-MaTch series. The 0.209-inch (5.30 mm) insulation height provides clearance for solder fillets and trace routing under the connector body.
Confirm the position count and row spacing match your BOM.
