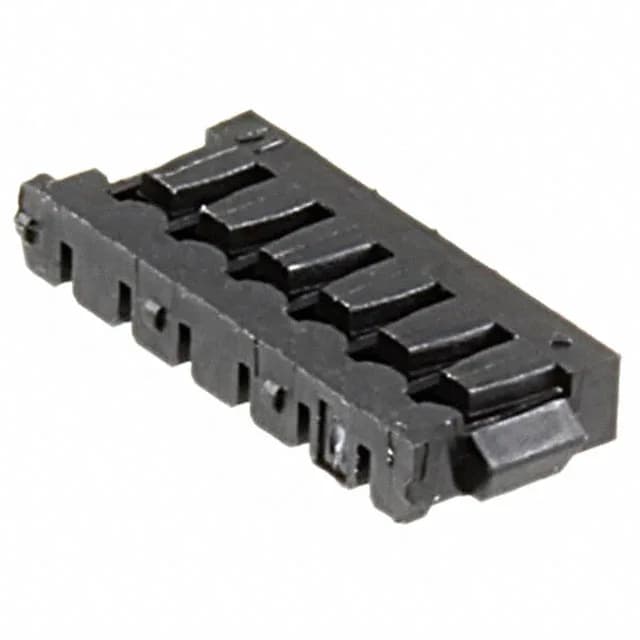

TE Connectivity High Performance Interconnect (HPI) receptacle housing, 1909783-5, 6 positions, 1.20mm pitch, single row, free-hanging, crimp termination, black PA66, detent lock.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Fastening type | Detent Lock |
| Operating temperature | -25°C ~ 85°C |
| Color | Black |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.047\" (1.20mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
It uses a 0.047" (1.20mm) pitch — the tightest contact spacing in the HPI family among the listed siblings, which means the board footprint and the mating header must match this exact pitch. The black polyamide (PA66) housing includes a detent lock for positive retention against vibration in the mated pair.
No, the 1909783-5 is a receptacle housing only — contacts are not included. You must order the matching female socket crimp terminals separately to populate the 6 positions.
The pitch is 0.047" (1.20mm), which is the tightest contact spacing in the HPI series among the listed variants. This governs the mating header pitch and the PCB footprint.
Yes, the 1909783-5 is RoHS compliant per the listing.
