USB-A Receptacle, 9 Contacts, USB 3.2 Gen 1 — 5000-Cycle Duty

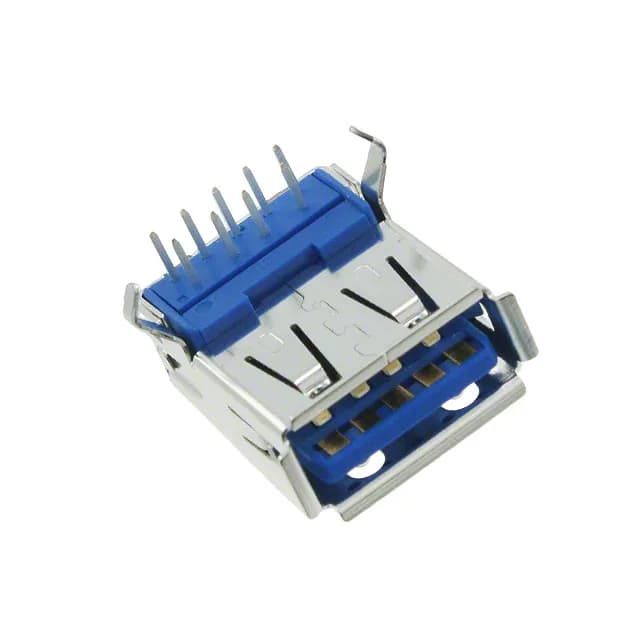

The TE Connectivity 1932258-1 is a single-port USB-A (USB TYPE-A) receptacle built to the USB 3.2 Gen 1 standard, which is electrically identical to USB 3.1 Gen 1 and USB 3.0 — so it handles 5 Gbps SuperSpeed data on the differential pairs. The 9-contact layout splits into four SuperSpeed pairs, one standard D+/D- pair, a power contact, and a ground; the current rating reflects that split, with signal contacts carrying 0.25A and the power contact rated 1.8A.
Right-Angle Through-Hole with Board Lock
The through-hole, right-angle orientation with horizontal mounting puts the USB port parallel to the PCB, so the cable inserts from the board edge — typical for rear I/O panels or card-edge applications.
USB 3.2 Gen 1 — What It Means for Compatibility
USB 3.2 Gen 1 is the same 5 Gbps signalling rate as USB 3.0 and USB 3.1 Gen 1 — the naming changed with the USB-IF rebranding, but the electrical spec did not. This connector is fully backward-compatible with USB 2.0 and USB 1.1 devices; a USB 2.0 cable plugs in and runs at the slower rate.
