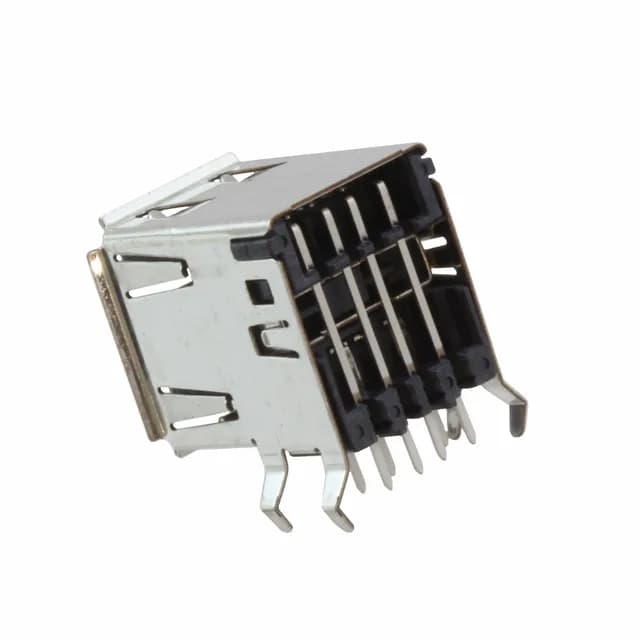

The TE Connectivity 1932522-1 is a stacked USB-A (USB TYPE-A) receptacle — two USB 2.0 ports stacked vertically in a single right-angle through-hole package. It carries 8 contacts total (4 per port), each rated 1 A at 30 VAC.
Board Lock and Mechanical Retention
The housing includes board locks — metal retention features that solder into the PCB alongside the signal pins. These take the insertion and extraction shear force off the solder joints, which matters for a stacked connector where the lever arm from two mated USB cables can be significant. The steel, stainless shell provides the grounding path and shields the differential pairs from radiated noise up to the USB 2.0 data rate.
No direct drop-in replacement is listed on the TE record.
What the 1500 Mating Cycles Mean
Rated for 1500 mating cycles — that is well above the typical USB-A specification (usually 1500 is the standard for USB 2.0 full-size connectors). For a panel-mount port that gets daily cable insertions over years, this rating covers the service life.
