TE Connectivity AMP Connectors 1932638-3 — USB, Type-C & HDMI Connectors

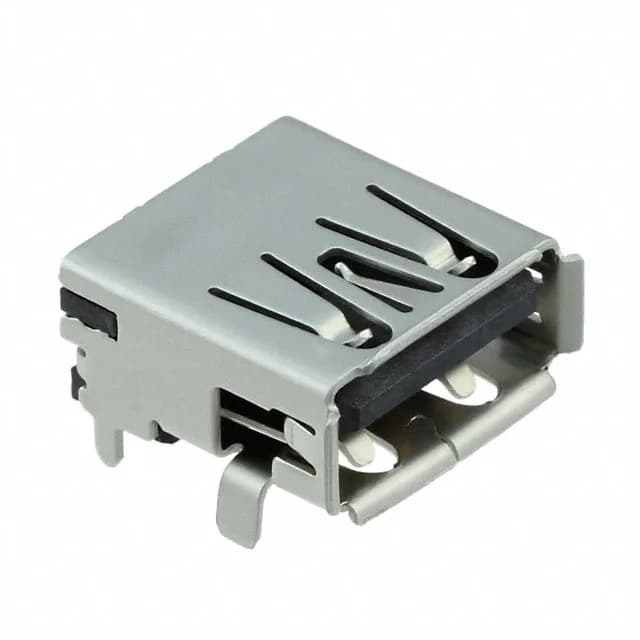

TE 1932638-3 USB-A Receptacle, 4 Contacts, Shielded

MPN1932638-3
Obsolete

TE 1932638-3 USB-A (USB TYPE-A) receptacle, 4 contacts, 1A per contact, 30VAC, SMT right-angle, shielded, gold-plated contacts, UL94 V-0.

$3.1000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1932638-3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

1932638-3 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeUSB-A (USB TYPE-A)
Voltage - rated30VAC
Current rating1A per Contact
Positions4
Mounting featureHorizontal
Operating temperature-55°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Carbon Steel
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR) Cut Tape (CT)

All specifications

1932638-3 additional specifications
ParameterValue
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Mating cycles1500
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB-A Receptacle for Board-Edge Mounting

The TE 1932638-3 is a single-port USB-A (USB TYPE-A) receptacle, built for surface-mount right-angle placement at the board edge. It carries 4 contacts rated 1A per contact at 30VAC, matching the USB 2.0 specification for standard data and power delivery.

Mating Cycles and Field Replacement

For a USB 2.0 port, 1500 cycles is above the typical 500–1000 cycle standard, so it holds up better in a service bay or on a production floor where cables get swapped daily.

The 1932638-3 is listed as Obsolete. No official replacement part number is on record from TE. If you are looking to substitute, the closest parametric match would be another TE USB-A SMT right-angle receptacle with the same 4-contact, shielded, gold-plated construction, but there is no pin-compatible drop-in replacement documented.

Frequently asked questions

What is the replacement for 1932638-3?

Since 1932638-3 is obsolete, buyers need a drop-in alternative to avoid redesign.

Is 1932638-3 RoHS compliant?

Compliance is critical for regulatory and environmental requirements.

Where can I buy 1932638-3?

Buyers need to source the part quickly from a trusted distributor.

What is the pinout of 1932638-3?

Design engineers need to verify connectivity and signal integrity.

What is the price of 1932638-3 in bulk?

Sourcing buyers need cost data for BOM estimation.

Is 1932638-3 end of life?

Lifecycle status affects availability and long-term support.
