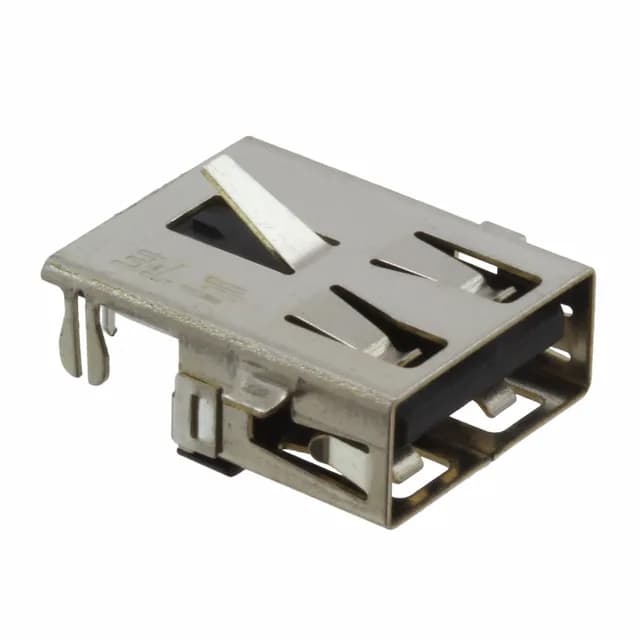

TE Connectivity USB-A receptacle, 1932733-1, 4 contacts, right-angle through-hole, gold contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Board Edge, Cutout; Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Positions | 4 |
| Mounting feature | Horizontal |
| Insulation color | Black |
| Shell (Shielding material) | Copper Alloy |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Lock, Solder Retention |
| Termination | Solder |
| Contact finish | Gold |
| Number of ports | 1 |
It carries 4 contacts in a single port, providing the VBUS, D+, D-, and ground lines typical of USB 2.0. The right-angle orientation and board-edge, cutout mounting style place the port flush with the edge of the PCB, matching the standard USB-A panel opening.
No official replacement part number has been designated by TE Connectivity for the 1932733-1. For a pin-compatible alternative, review current TE USB-A receptacles with the same 4-contact, right-angle, board-edge mounting configuration.
