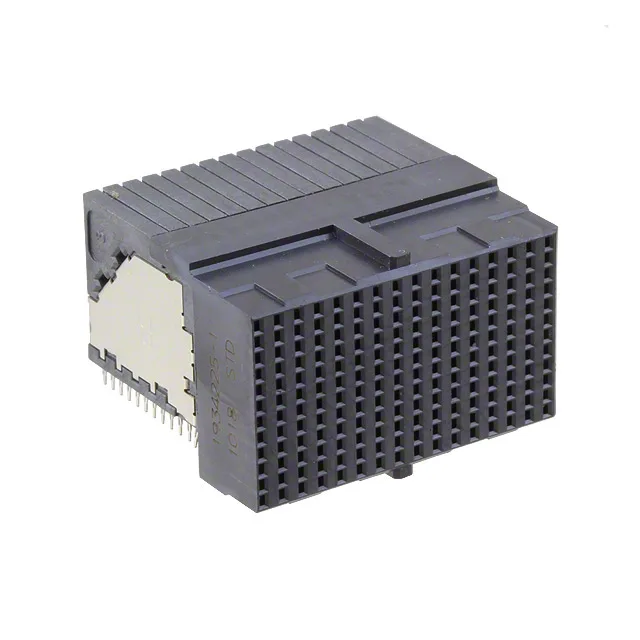

TE Connectivity AMP Connectors 1934225-1
MPN1934225-1
Active
CONN RCPT HD 192POS EDGE MNT
$39.86Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesZ-PACK TinMan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Z-PACK TinMan |
| Mounting | Board Edge, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 250V |
| Current rating | 0.5A |
| Connector usage | Coplanar, Daughtercard |
| Operating temperature | -65°C ~ 90°C |
| Color | Black |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.075\" (1.90mm) |
| Package | Tube |
| Termination | Press-Fit |
| Contact finish | Gold |
| Rows | 12 |
| Number of columns | 16 |
| Positions | 192 |
| Contact finish thickness | 30.0µin (0.76µm) |
