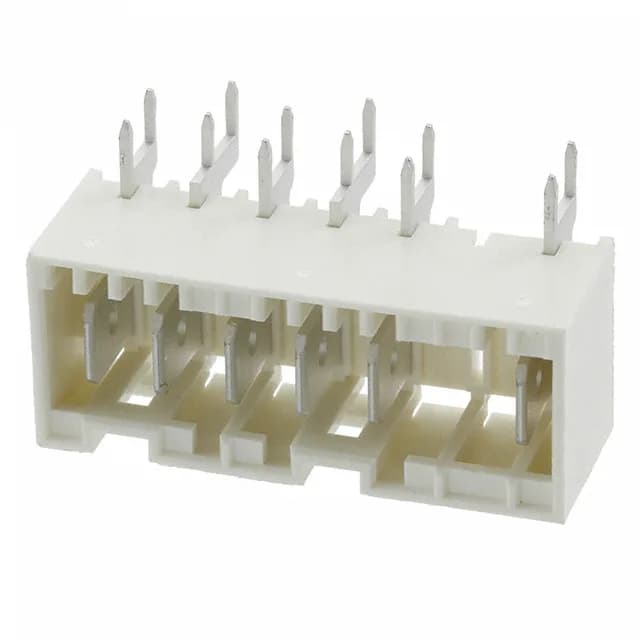

TE Connectivity AMP Connectors header, order code 1955660-7, 7 positions (6 loaded), single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through hole right angle, solder termination.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation height | 0.587\" (14.91mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 1955660-7 is a 7-position (6 loaded) single-row header from TE Connectivity AMP Connectors, part of the 1955660 base series, configured for board-to-cable/wire applications.
Insulation height is 0.587" (14.91 mm).
The 1955660-7 is orderable through this distributor. Request a quote for current pricing and lead time against your BOM quantity.
The style is Board to Cable/Wire.
