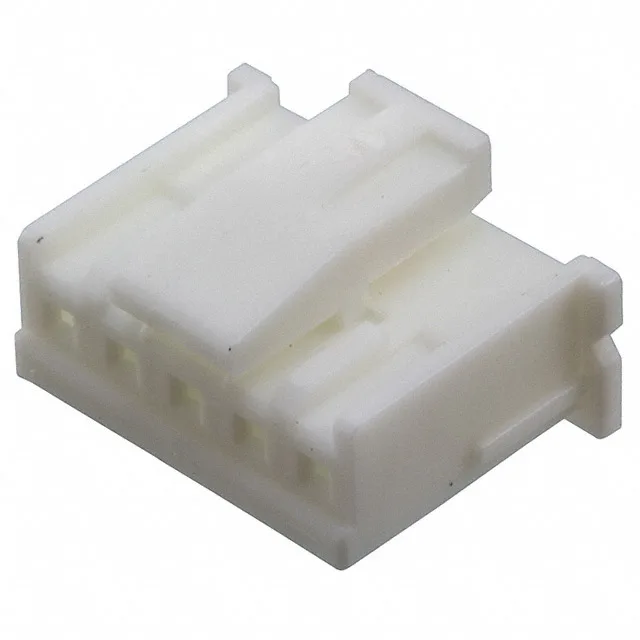

TE Connectivity Economy Power 2.5, plug housing, 5 positions, 1 row, 0.098" (2.50mm) pitch, free-hanging (in-line), crimp termination, natural polyamide, latch holder, contacts not included.
| Parameter | Value |
|---|---|
| Series | Economy Power 2.5 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA), Nylon |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 5 |
It mates with the matching 2.50mm pitch header (typically the 1969438 series) to form a reliable, latch-secured connection.
The 0.098" (2.50mm) pitch and single-row layout accept standard Economy Power 2.5 contacts, which are crimped onto 20-24 AWG wire and inserted into the rear of the housing.
No. The housing ships without contacts — the female socket crimp terminals must be ordered separately as a line item on your BOM.
The pitch is 0.098" (2.50mm), which matches the standard Economy Power 2.5 header footprint.
Yes, it is RoHS compliant per the manufacturer's listing.
