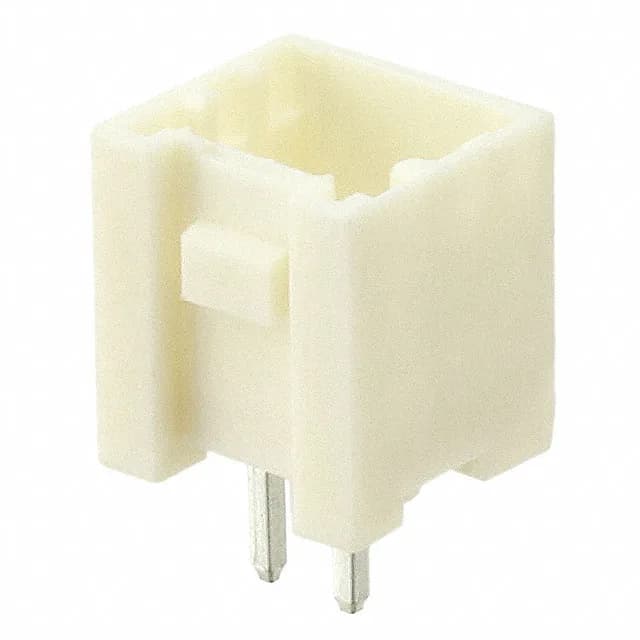

TE Connectivity AMP Connectors Grace Inertia, GIC series, 1971032-2, Board to Cable/Wire, Header, Male Pin, 2 Positions, 2.00mm Pitch, Through Hole, Solder, Shrouded - 4 Wall, Latch Holder, Board Lock, Tin Contacts, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 50V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.256\" (6.50mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 2 |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Contact finish - mating | Tin |
It mates with the corresponding Grace Inertia receptacle housing (e.g., 1971032-1 or similar GIC crimp housings) to form a board-to-cable/wire connection.
Voltage rating is 50V, which suits low-voltage signal and power distribution inside equipment enclosures. The insulation is glass-filled PA66 (Nylon 6/6). The buyer must select the crimp terminal and wire size to match the load current.
Yes. The fastening type is a latch holder — a positive locking mechanism that secures the mating receptacle in place against vibration and cable pull.
The current rating varies by wire gauge used in the mating half. There is no single per-contact current value; the buyer must select the crimp terminal and wire size to meet the application load.
