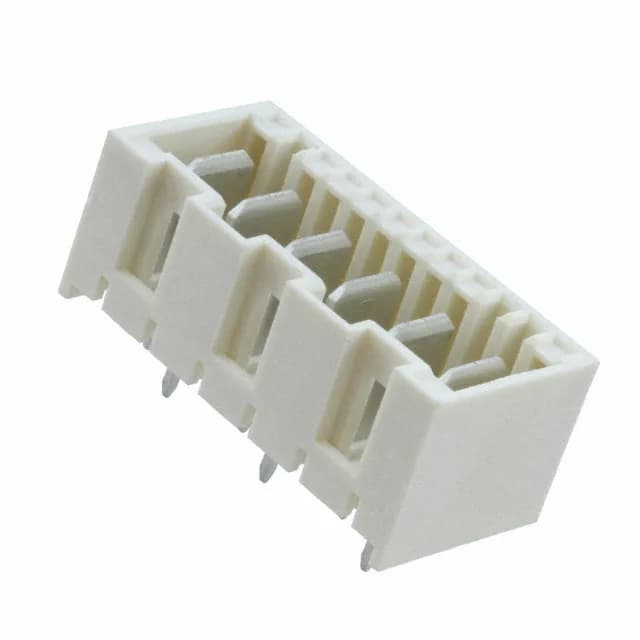

TE Connectivity AMP Connectors RAST 5 header, order code 1971895-6, 6 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | RAST 5 |
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
The 1971895-6 is the 6-position member of TE's RAST 5 header line, a board-to-cable/wire shrouded header with a 4-wall shroud and latch holder fastening. Rated 250 VAC with tin-plated mating contacts, the header mounts through hole and terminates by solder.
