TE Connectivity AMP Connectors 1986158-6
MPN1986158-6
Active

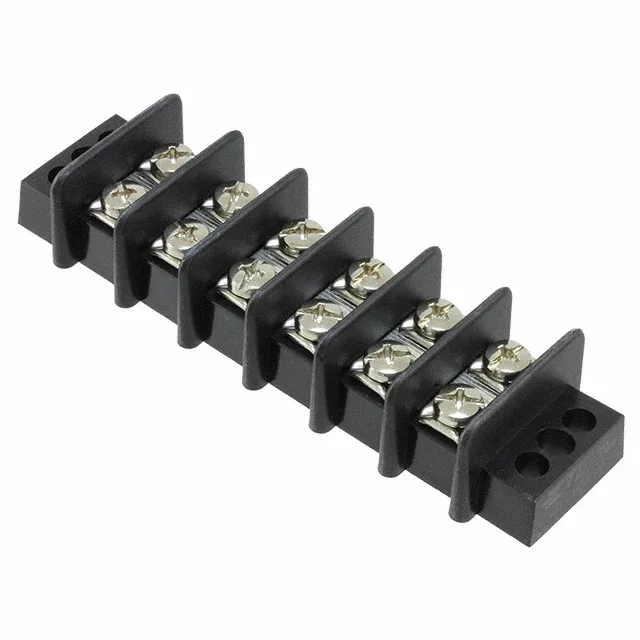

CONN BARRIER STRIP 6CIRC 0.563"
$8.92Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesBuchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Buchanan |
| Barrier type | 2 Wall (Dual) |
| Mounting | Chassis, Panel |
| Terminal block type | Barrier Block |
| Voltage rating | 600V |
| Current rating | 30A |
| Wire gauge | 10-22 AWG |
| Terminal screw finish | Nickel |
| Number of wire entries | 12 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 120°C |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.563\" (14.30mm) |
| Package | Bulk |
| Features | Flange |
| Rows | 2 |
| Top termination | Screws with Captive Plate |
| Bottom termination | Closed |
| Number of circuits | 6 |
