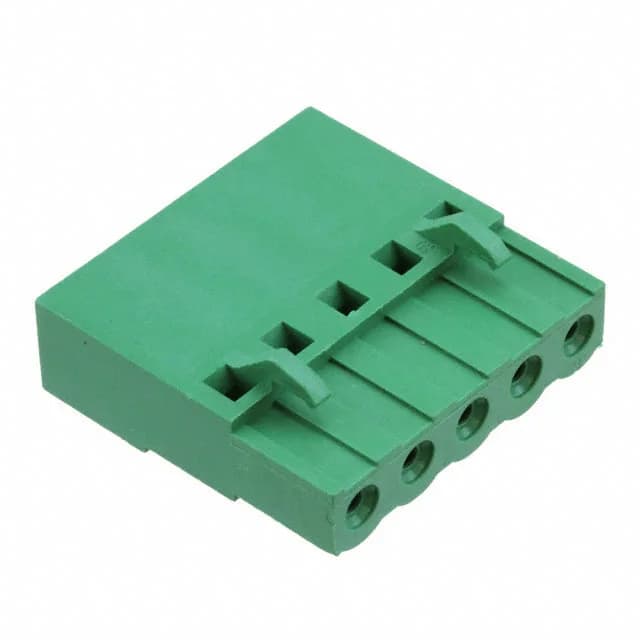

TE Connectivity AMP Connectors plug housing for female sockets, order code 1986160-5, 5 positions, 0.200" (5.08mm) pitch, single level, free hanging, green polyester housing, UL94 V-0, retention latches (non-wire side), bulk.
TE 1986160-5 Plug Housing, 5 Pos, 5.08mm, Obsolete
MPN1986160-5
Obsolete
TE Connectivity AMP Connectors plug housing for female sockets, order code 1986160-5, 5 positions, 0.200" (5.08mm) pitch, single level, free hanging, green polyester housing, UL94 V-0, retention latches (non-wire side), bulk.
$4.2574Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Housing for Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Plug wire entry | 180° |
| Color | Green |
| Housing material | Polyester |
| Insulation height | 0.295\" (7.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Positions | 5 |
| Positions per level | 5 |
Product details
Frequently asked questions
What is the 1986160-5's listed type and color?
The 1986160-5 is a plug housing for female sockets, color green, with 5 positions at 0.200" (5.08mm) pitch.
