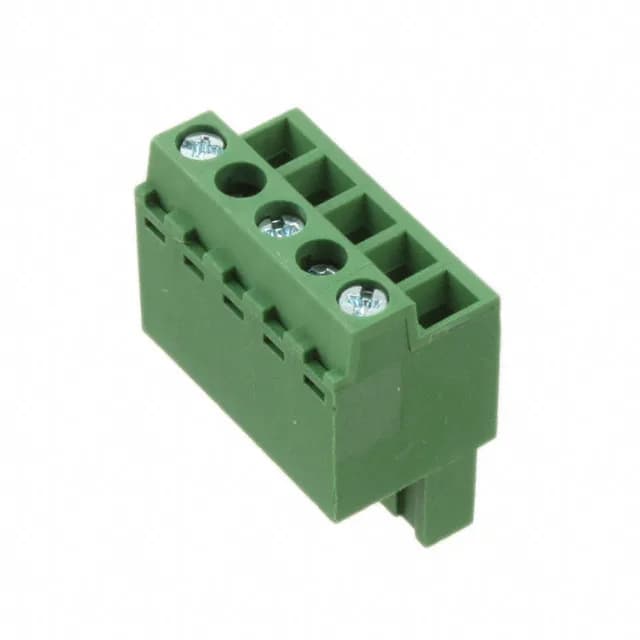

Plug, Female Sockets, order code 1986300-5, 5 positions, single level, 5.00 mm pitch, 16 A, 300 V, screw-pressure clip termination, tin-plated phosphor bronze contacts, free hanging (in-line), green PA66 housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.51 Nm (4.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
The 1986300-5 is a 5-position single-level plug with female sockets, pitched at 5.00 mm, terminated by a screw-pressure clip that accepts 14-24 AWG (0.2-2 mm²) wire stripped to 10 mm. Rated 16 A at 300 V with tin-plated mating contacts, the green PA66 housing carries a UL94 V-0 flammability rating and includes retention latches on the non-wire side.
The 1986300-5 is marked Obsolete by the manufacturer.
