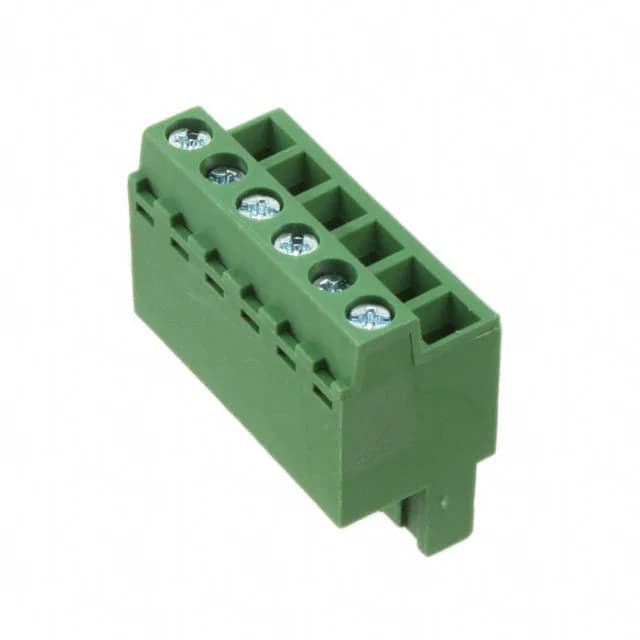

1986300-6
MPN1986300-6
Obsolete
$7.0000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.51 Nm (4.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
