Free-hanging plug with screw termination
The 1986300-8 is an 8-position plug with female sockets from TE Connectivity AMP Connectors, part of the 1986300 base series, terminated via screw-pressure clip for 14-24 AWG or 0.2-2 mm² solid/stranded wire.

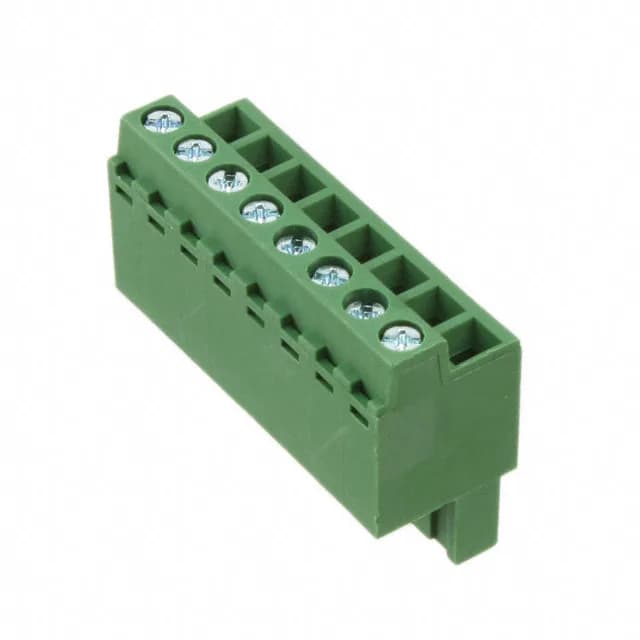

TE 1986300-8 Plug, Female Sockets, 8 Pos, 5.00mm
MPN1986300-8
Active
TE Connectivity AMP Connectors plug, female sockets, order code 1986300-8, 8 positions, single level, 5.00 mm pitch, 16 A, 300 V, tin-plated phosphor bronze contacts, screw-pressure clip termination, free hanging, 180° wire entry, green housing.
$9.3535Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 16 A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-2mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.587\" (14.91mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Torque - screw | 0.51 Nm (4.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Pressure Clip |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
Product details
Frequently asked questions
What wire gauge range does the screw clamp accept?
The screw-pressure clamp accepts 14-24 AWG (0.2-2 mm²) solid or stranded wire with a 10 mm strip length.
