TE Connectivity AMP Connectors 1986370-4 — Pin Headers, Sockets & Housings

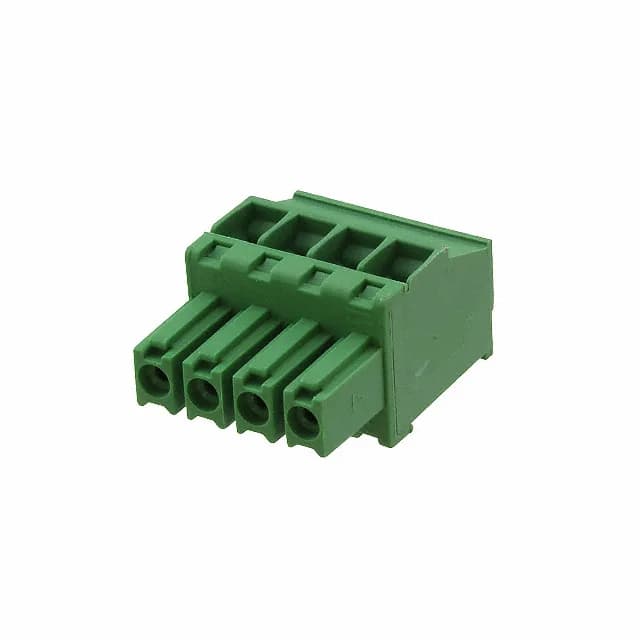

1986370-4 TE Connectivity Plug, Female Sockets 4 Pos 3.50mm

MPN1986370-4
Active

TE Connectivity AMP Connectors plug, female sockets, order code 1986370-4, 4 positions, 0.138" (3.50mm) pitch, 11 A, 300 V, tin-plated phosphor bronze contacts, screw - rising cage clamp termination, free hanging (in-line), 90° wire entry.

$3.6025Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1986370-4 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry90°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.756\" (19.20mm)

All specifications

1986370-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesSide Stacking
Screw sizeM2
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions4
Positions per level4
Contact mating finishTin

Product details

Terminal block plug, 4-way, rising cage clamp

The 1986370-4 is a 4-position plug with female sockets from TE Connectivity AMP Connectors, terminated by a screw-driven rising cage clamp that accepts 14-30 AWG (0.05-2 mm²) wire.

Free-hanging, side-stackable design

The plug mates in-line with the header and accepts wire entry at 90°, with a side-stacking feature that allows multiple plugs to be ganged side-by-side without additional hardware. An M2 screw secures the rising cage clamp, and the green housing colour is consistent across the series for visual identification.

Frequently asked questions

What compliance documentation is available for 1986370-4?

RoHS and REACH compliance data is available on the product detail page.
