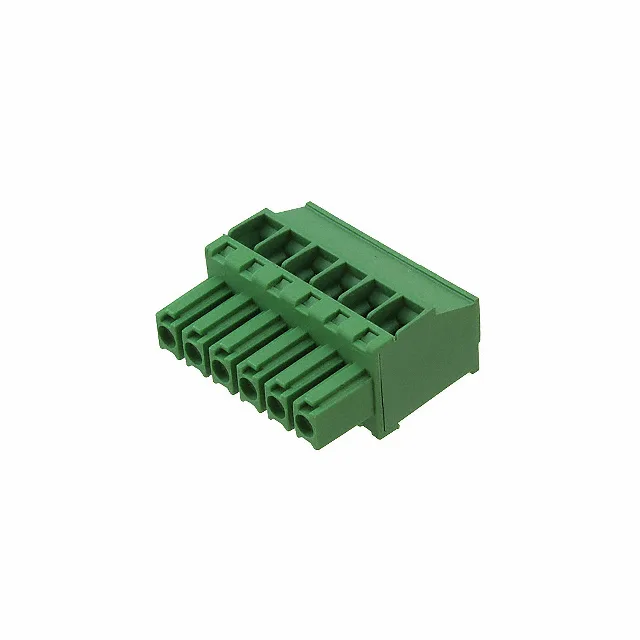

TE Connectivity AMP Connectors plug, order code 1986370-6, 6 positions, single level, 0.138" (3.50mm) pitch, 11 A, 300 V, tin-plated phosphor bronze contacts, free hanging (in-line), 90° wire entry, screw - rising cage clamp termination.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.756\" (19.20mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
The 1986370-6 is a 6-position plug from TE's 1986370 series, accepting 14-30 AWG (0.05-2 mm²) wire via a screw-rising cage clamp.
The green polyamide (PA66) housing includes a side-stacking feature, allowing multiple plugs to be ganged without additional hardware. The 90° wire entry keeps the cable routed parallel to the mating surface, and the UL94 V-0 rating suits enclosed equipment.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors for this part.
