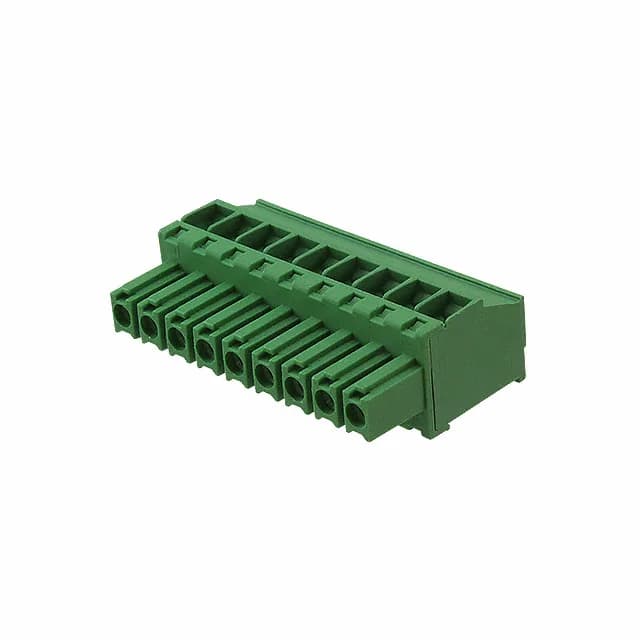

TE Connectivity AMP Connectors 1986370-9
MPN1986370-9
Active
$11.1221Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.756\" (19.20mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 9 |
| Positions per level | 9 |
| Contact mating finish | Tin |
