TE Connectivity AMP Connectors 1986371-7 — Pin Headers, Sockets & Housings

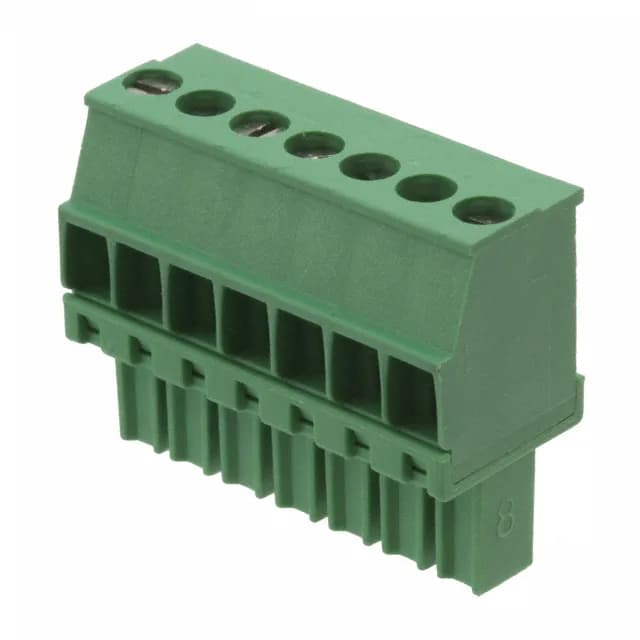

1986371-7 TE Connectivity 7-Position Plug, 3.50mm Pitch

MPN1986371-7
Active

TE Connectivity AMP Connectors 1986371-7, a 7-position plug with female sockets, 0.138" (3.50mm) pitch, 11 A, 300 V, screw rising cage clamp termination, green housing, free hanging, UL94 V-0.

$8.7525Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1986371-7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1986371-7 key specifications
ParameterValue
TypePlug, Female Sockets
MountingFree Hanging (In-Line)
Voltage - UL300 V
Current - UL11 A
Plug wire entry270°
Wire gauge or range - AWG14-30 AWG
Wire gauge or range - mm20.05-2mm²
Operating temperature-40°C ~ 110°C
ColorGreen
Contact materialPhosphor Bronze
Housing materialPolyamide (PA66), Nylon 6/6
Insulation height0.756\" (19.20mm)

All specifications

1986371-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesSide Stacking
Screw sizeM2
Number of levels1
Termination styleScrew - Rising Cage Clamp
Positions7
Positions per level7
Contact mating finishTin

Product details

7-Position Screw-Clamp Plug for Field Wiring

The 1986371-7 is a 7-position plug with female sockets from TE Connectivity, designed for free-hanging (in-line) termination with a screw rising cage clamp.

Wire Entry and Side Stacking for Tight Panels

Side stacking allows multiple 1986371-7 plugs to interlock side-by-side without extra brackets, building a multi-position terminal block from individual 7-way sections. The M2 screw in the rising cage clamp torques down on the conductor, and the clamp lifts to release — no stripped threads if you back it off.

Frequently asked questions

What is the pin count of 1986371-7?

The 1986371-7 has 7 positions in a single level, with all 7 contacts on one row.

What is a suitable replacement or equivalent for 1986371-7?

No official replacement or pin-compatible equivalent is recorded from TE Connectivity. The base product number 1986371 covers the series; any alternative would require matching the 3.50mm pitch, 7 positions, screw clamp termination, and free-hanging mount.

How do I install 1986371-7 plug?

Strip the wire to the length specified in the product drawing, insert into the rising cage clamp, and tighten the M2 screw to the recommended torque. The plug mates with a matching 3.50mm pitch header; side stacking allows multiple plugs to interlock.
