3.81mm pitch, 8-position plug with 90° wire entry

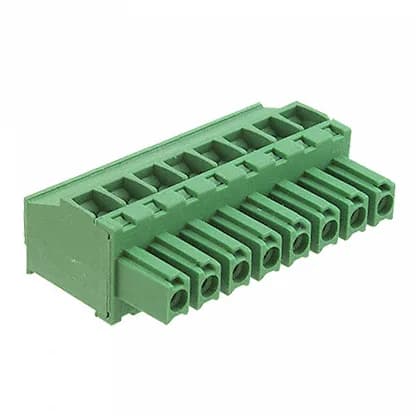

The 1986374-8: This is an 8-position plug from TE's 1986374 series, using a 0.150" (3.81mm) pitch. The 90° wire entry keeps the cable routed parallel to the mating header, saving space in a panel or enclosure where straight-in access is tight. Rated 11 A at 300 V UL, it handles moderate power for industrial control, instrumentation, and building automation wiring. The 14-30 AWG wire range (0.05-2mm²) covers most signal and low-power circuits.
Screw-rising cage clamp termination
Termination is via a screw-rising cage clamp — the screw lifts a clamp plate against the conductor, giving a gas-tight connection without damaging the wire strands. The M2 screw size is standard for this pitch class. Housing is green polyamide (PA66) rated UL94 V-0, and the operating range is -40°C to 110°C, suitable for indoor industrial cabinets and outdoor telecom enclosures that see temperature swings.
