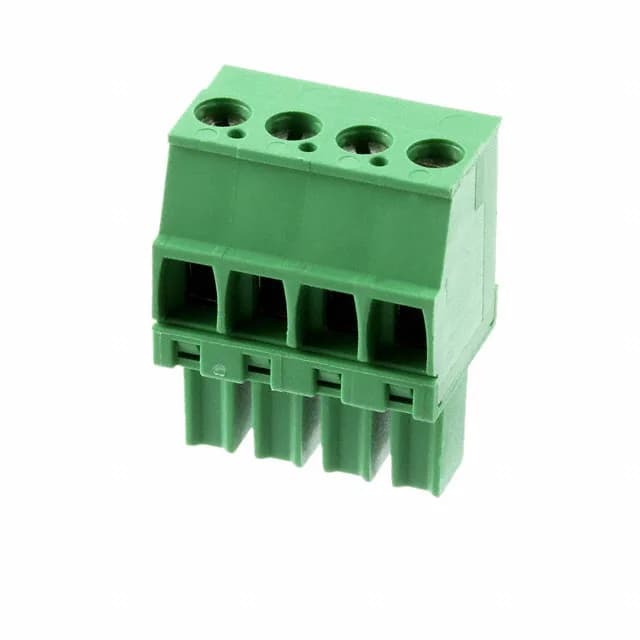

TE Connectivity AMP Connectors plug, order code 1986375-4, 4 positions, single level, 0.150" (3.81mm) pitch, 11 A, 300 V, tin-plated phosphor bronze contacts, free-hanging, screw - rising cage clamp termination, bulk.
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 11 A |
| Plug wire entry | 270° |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.05-2mm² |
| Operating temperature | -40°C ~ 110°C |
| Color | Green |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.756\" (19.20mm) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
| Features | Side Stacking |
| Screw size | M2 |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
The 1986375-4 is a 4-position plug with female sockets from TE Connectivity AMP Connectors, part of the 1986375 base series. It uses a 0.150" (3.81mm) pitch and a rising cage clamp screw termination for 14-30 AWG wire.
The 0.756" (19.20mm) insulation height provides clearance for the rising cage clamp mechanism, which accepts solid or stranded wire from 14-30 AWG (0.05-2mm²).
The rising cage clamp accepts 14-30 AWG (0.05-2mm²) solid or stranded wire.
