6-position plug, 270° wire entry

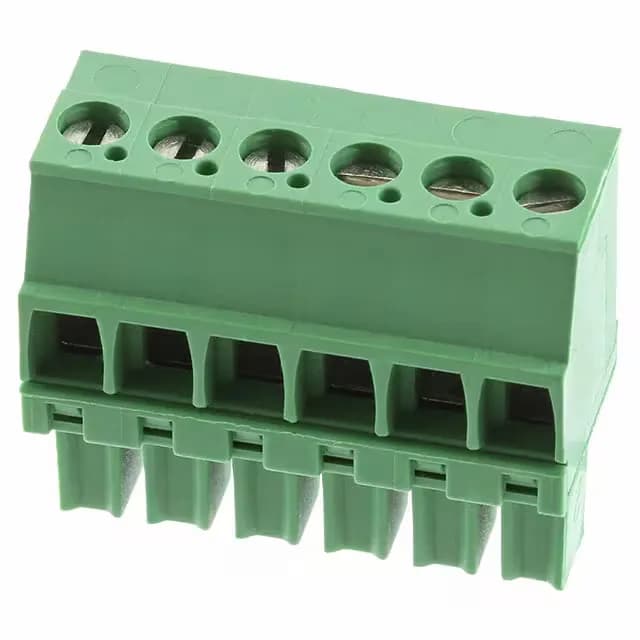

The 1986375-6 is the 6-circuit member of TE's rising-cage-clamp plug line, a free-hanging (in-line) female socket plug with 270° wire entry and side-stacking feature. It accepts 14-30 AWG (0.05-2 mm²) wire, rated 11 A at 300 V, with a UL94 V-0 polyamide housing and tin-plated phosphor bronze contacts.
Clamp termination and side-stacking
The screw - rising cage clamp secures each conductor individually; the M2 screw size drives the clamp force. Side stacking allows ganging multiple plugs on the same pitch without extra hardware, keeping the board footprint consistent across positions.
